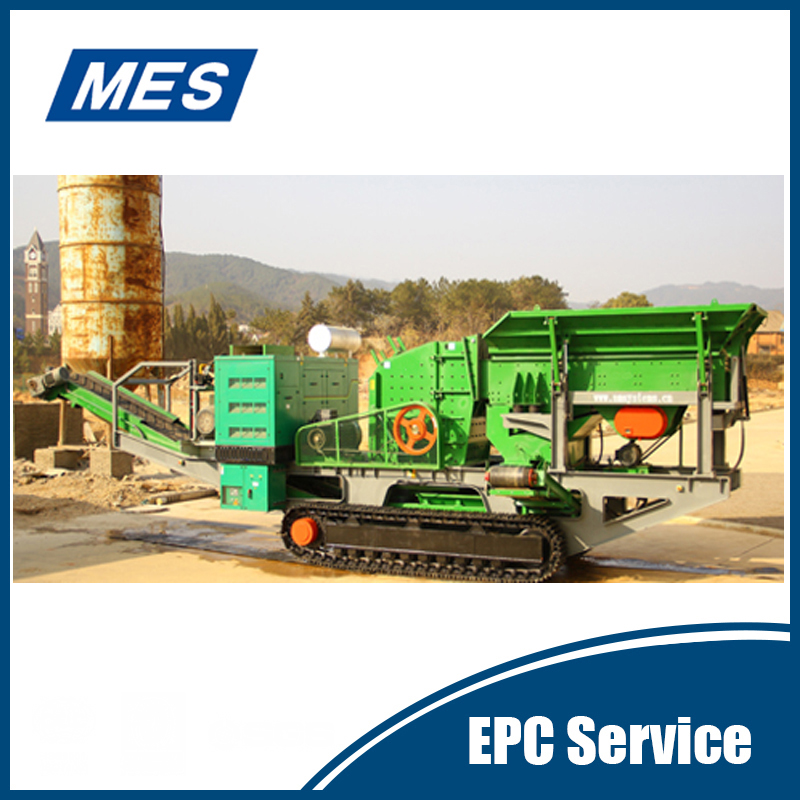

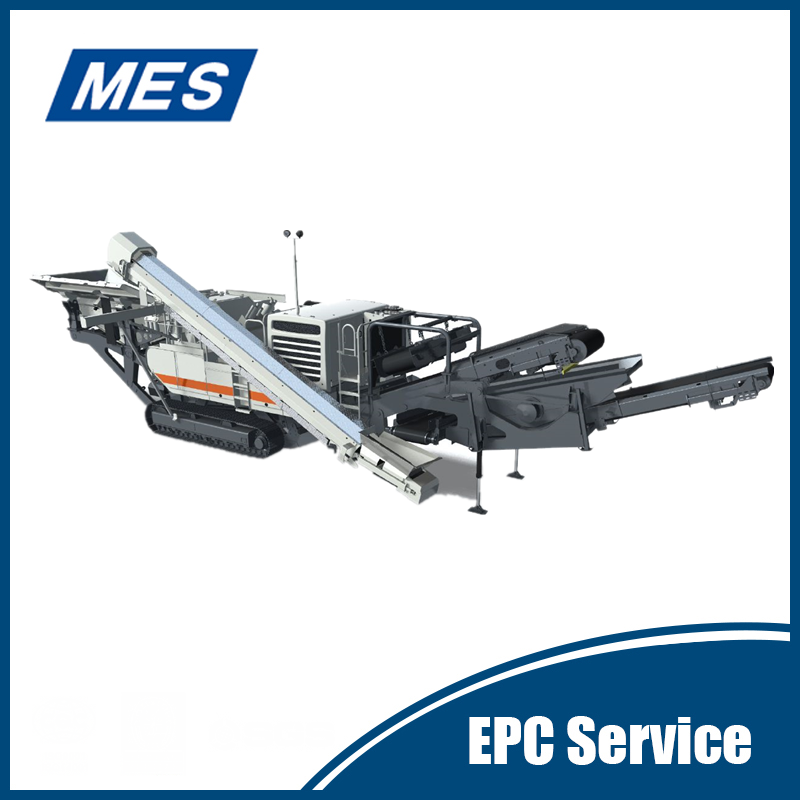

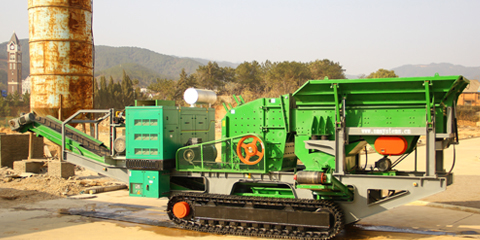

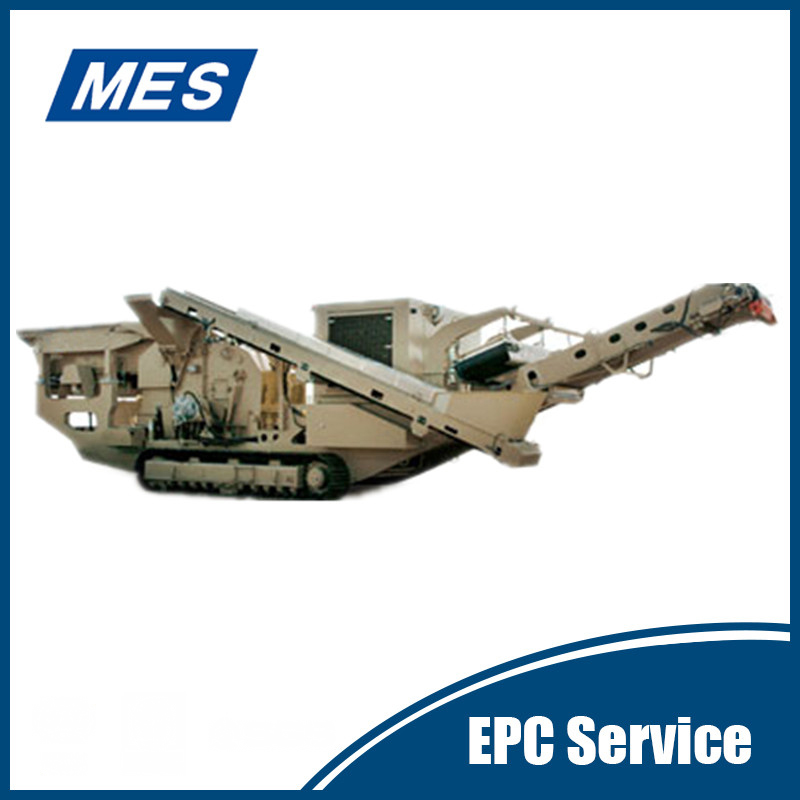

Track Impactor Plant
- MES track impactor plants are suitable for contracting, quarrying and in-pit crushing applications. With the HMT mobile plants, you can build a fully mobile and independent mobile process for your needs.
Model:HMT series
Weight:47800-60000kg
Composition:Feeder,Crusher,Main Conveyor,Tracks,Engine
Track Impactor Plant
1.Introduction of Track Impactor Plant
MES mobile crushing & screening plants are suitable for contracting, quarrying and in-pit crushing applications. With the HMT mobile plants, you can build a fully mobile and independent mobile process for your needs.
The proven HMT series features an extensive range of track-mounted crushing plants designed for contracting, quarrying and in-pit crushing applications. The plants are built around robust, high capacity crushers, feeders and screens, enabling them to process practically any rock or ore.
Replacing the conventional dump truck fleet
with a HMT series primary crushing plant followed by a belt conveying system,
or with a complete mobile in-pit crushing plant, brings significant savings in
production costs. It also significantly reduces the load on the environment.
The HMT Series plants can operate close to
the face, so the excavator or wheel loader operator can control the complete
crushing operation. This reduces both costs and the workload.
For aggregate production, the HMT Series
can comprise two or three stage crushing plants. For in-pit and mining
applications, the HMT range is complemented by conveyors and mobile apron
feeders.
2.Features of Track Impactor Plant
- A combined plant—A Combined arrangement design plant saves land area, shortens the time between set up and production, and has a good land adaptation.
- A better mobility—The plants could move on road or quarries to meet various application.
- A lower freight—A blasting site crushing for mobile plants could save cost in oversize handling compared stationary plants.
- Flexible combination—Fexible combination for various crushing and screening systems, mobile crushing and screening plant can work dependently to meet the production demand for various.
- High performance and reliability.
|
Technical Parameters |
|||
|
|
HMT1110HS |
HMT1213HS |
HMT1315HS |
|
Weight(kg) |
47800 |
52000 |
60000 |
|
Feeder |
|||
|
Model |
HPF1040M |
HPF1245 |
HPF1345 |
|
Grizzly Bars |
2*900 |
2*1200 |
2*1200 |
|
Hopper Volume(m3) |
4 |
5 |
6 |
|
Crusher |
|||
|
Model |
HS1110 |
HS1213 |
HS1315 |
|
Feed Opening (mm*mm) |
1170*810 |
1360*815 |
1550*815 |
|
Drive |
Direct Mechanical |
Direct Mechanica |
Direct Mechanica |
|
Main Conveyor |
|||
|
Length(mm) |
11000 |
12000 |
14000 |
|
Width(mm) |
1000 |
1200 |
1400 |
|
Discharge Height(mm) |
3144 |
3320 |
3400 |
|
Drive |
Hydraulic |
Hydraulic |
Hydraulic |
|
Tracks |
|||
|
Shone Width(mm) |
500 |
600 |
600 |
|
Engine |
|||
|
Model |
C9 ACERTC |
C11 ACERTC |
C13 ACERTC |
|
Rating(kw) |
242 |
287 |
328 |
|
Fuel Capacity(L) |
480 |
530 |
700 |
|
Hydraulic |
|||
|
Oil Capacity(L) |
500 |
600 |
600 |
|
Performance |
|||
|
Maximum Feed Size(mm) |
600 |
700 |
700 |
|
Capacity(t/h) |
300 |
400 |
500 |
|
Maximum Operating Slope |
|||
|
Side-to-Side |
5° |
5° |
5° |
|
Front-to-Back |
20° |
16° |
14° |
|
Fuel Consumption |
59.7L/h (1800r/min) |
66.5L/h(1800r/min) |
89.1L(1800r/min) |
