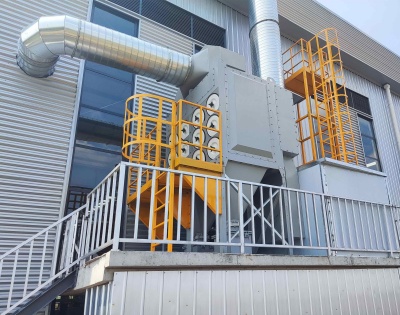

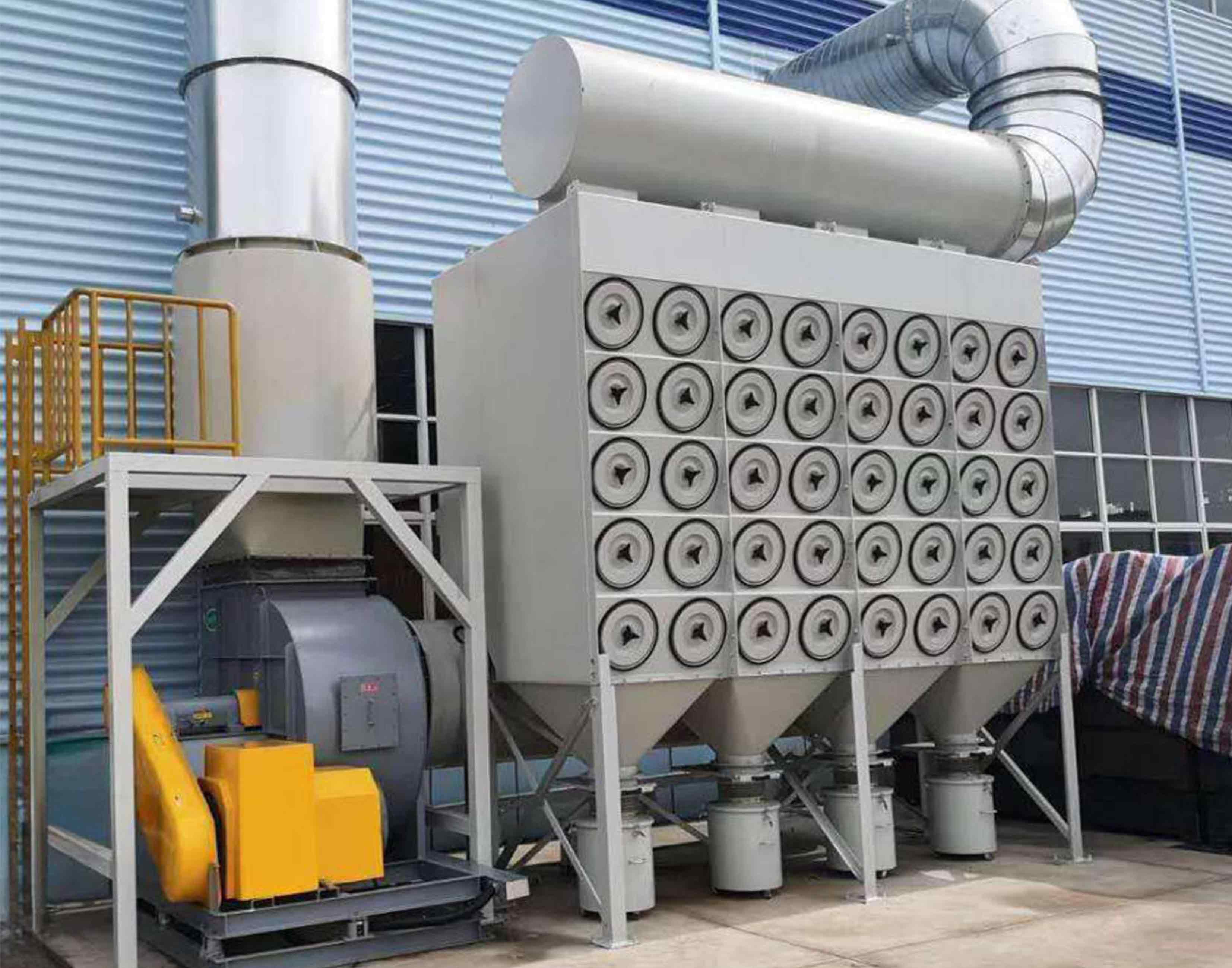

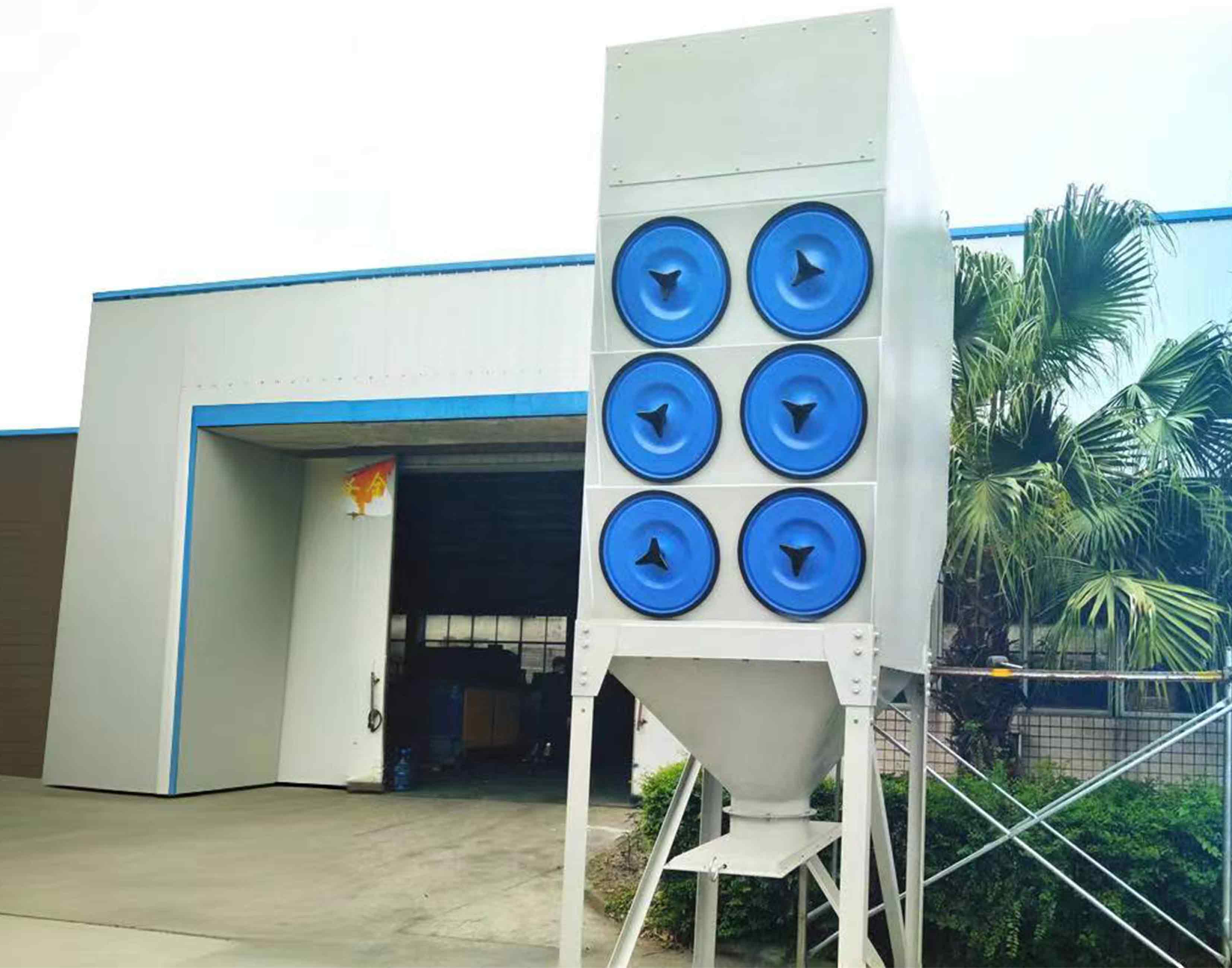

The inclined-insertion cartridge dust collector
1. Introduction to the inclined-insertion cartridge dust collector
The inclined-insertion cartridge dust collector is a highly efficient and versatile air pollution control device designed to remove dust particles and other airborne contaminants from industrial exhaust gases. It incorporates a unique filter cartridge arrangement that allows for easy access and maintenance while maintaining exceptional dust collection performance.
2. Working Principle of Inclined Cartridge Dust Collector
The inclined cartridge dust collector operates based on a combination of gravitational and inertial separation principles. When dust-laden air enters the dust collector, several processes occur concurrently:
(1) Coarse Particle Separation: Due to the sudden expansion of the airflow cross-section and the effect of the airflow distribution plate, larger particles with significant mass settle down directly into the ash hopper, leveraging gravity and inertia.
(2) Fine Particle Filtration: Smaller, finer particles that manage to enter the filtration chamber are captured through a combination of mechanisms, such as Brownian diffusion and fiber interception. These particles accumulate on the surface of the inclined cartridges, which are designed to enhance the filtration efficiency and dust retention.
(3) Air Cleaning: As the dust particles accumulate on the cartridge surface, the cleaned air passes through the cartridges and exits the dust collector via the outlet, ensuring a significant reduction in particulate matter.
(4) Dust Removal (Cleaning Cycle): Over time, the accumulation of dust on the cartridge surface increases the resistance to airflow. When this resistance reaches a predetermined threshold, the cleaning cycle initiates. The PLC-controlled pulse valves activate, releasing a burst of compressed air into the cartridges. This causes the cartridges to expand and vibrate, dislodging the accumulated dust. The dislodged dust falls into the ash hopper for subsequent disposal.
(5) Efficient Design: The inclined design of the cartridges facilitates the smooth sliding of dust particles down the surface, enhancing the dust removal efficiency during the cleaning cycle.
3. Key Features of the inclined-insertion cartridge dust collector
(1) Innovative Cartridge Design: The dust collector utilizes inclined-insertion filter cartridges, which are positioned at an angle to facilitate effortless insertion and removal. This design simplifies the cleaning process and minimizes downtime during maintenance operations.
(2) High Filtration Efficiency: The filter cartridges are made from high-quality, durable materials such as polyester or PTFE-coated media, which offer exceptional filtration efficiency. They can capture particles as small as 0.3 microns in size, ensuring clean air discharge that meets or exceeds regulatory standards.
(3) Large Filtering Area: The inclined-insertion design allows for a compact footprint while maximizing the filtering area. This results in higher airflow capacities and lower pressure drops, making the dust collector suitable for a wide range of industrial applications.
(4) Automatic Cleaning System: Most models are equipped with an automatic pulse-jet cleaning system that periodically cleans the filter cartridges. This ensures continuous and efficient dust removal without manual intervention, maintaining optimal filtration performance over time.
(5) Durable Construction: The dust collector is constructed from heavy-duty materials that can withstand harsh industrial environments. It is designed for long-term reliability and minimal maintenance requirements.
(6) Easy Maintenance: The inclined-insertion design greatly simplifies maintenance tasks. Cartridges can be quickly and easily accessed for cleaning or replacement, minimizing downtime and reducing labor costs.
(7) Versatile Applications: Suitable for a wide range of industries, including metalworking, woodworking, cement, chemical processing, and more. It can handle both dry and wet dust particles, making it a versatile solution for various dust collection needs.
(8) Environmental Compliance: By effectively removing dust and other pollutants from exhaust gases, the inclined-insertion cartridge dust collector helps businesses comply with environmental regulations and promote sustainable operations.

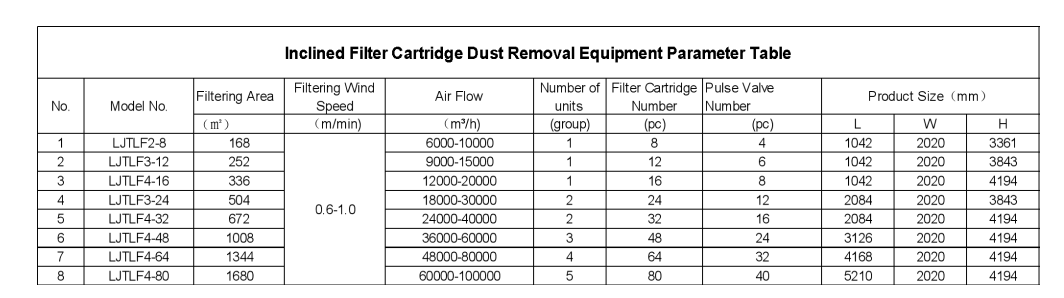

4. Technical Parameters of the inclined-insertion cartridge dust collector
In summary, the inclined-insertion cartridge dust collector is a reliable and efficient solution for controlling air pollution in industrial settings. Its innovative design, high filtration efficiency, and ease of maintenance make it an attractive choice for businesses looking to improve their dust collection processes.
