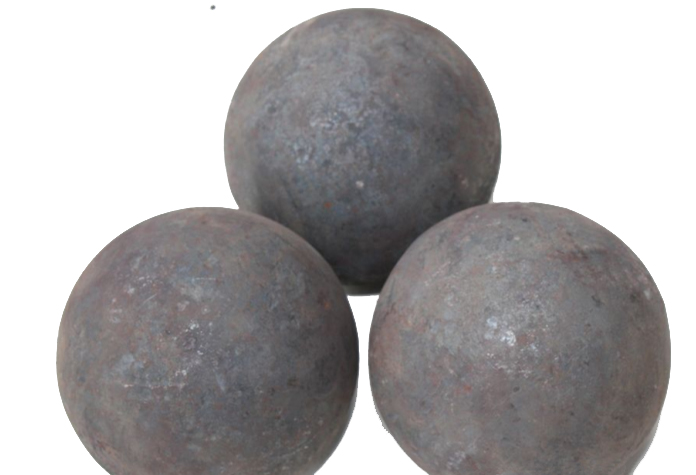

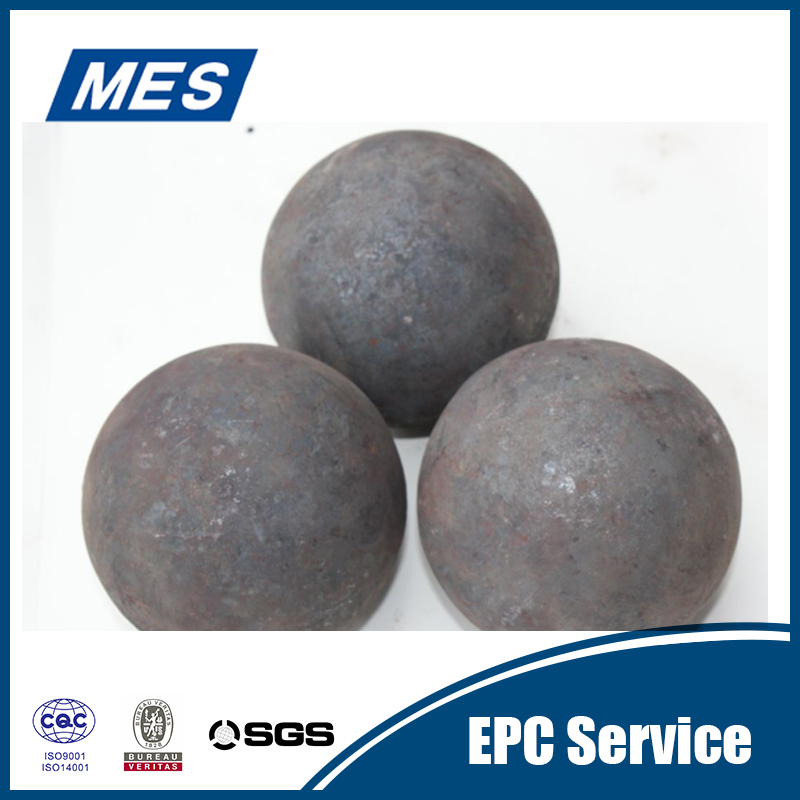

Casting Steel Ball
- Model：Casting steel ball
Weight：0.32~13.8kg
Surface hardness：45~65HRC
Application range：It is widely used in cement, mining, grinding coal power plant, chemical, machinery and other industries.
Casting Steel Ball
Introduction
It has the advantages of high quality, good impact resistance, good toughness, excellent wear- resistance and it is not easily broken.
Features
1. Breaking rate is lower than 0.5%. Breaking resistance is 10 times than ordinary grinding ball.
2. High impact toughness：Impact toughness is more than 18J/cm2, 8 m falling ball experiments are more than 20000 times.
3. High hardness：Surface hardness 58-67HRC, volume hardness 58-67HRC, hardness gradient is evenly distributed.
4. No deformation.
5. Dense structure，cost-effective.
Quality inspection
1. Surface quality inspection
2. Size
3. Surface hardness inspection
4. Core-pulling volume hardness inspection
5. Impact toughness inspection
6. Metallographic structure inspection
7. Drop inspection
Chemical composition
|
Name |
Chemical composition（%） |
|||||
|
C |
Si |
Mn |
Cr |
S |
P |
|
|
Casting steel ball
|
0.5~0.65 |
0.15~0.37 |
0.6~1.2 |
≤0.25 |
≤0.04 |
≤0.04 |
Specification and Hardness
|
Nominal diameter（mm） |
Allowable deviation of diameter (mm) |
Casting steel ball average unit weight (g) |
Average number of casting steel ball per ton |
Surface hardness (HRC) |
Impact toughness (j/cm²) |
|
20 25 30 40 50 |
+2 -1 |
32 64 110 263 513 |
31250 15625 9090 3802 1949 |
50~65 |
≥12 |
|
60 70 80 90 100 |
+3 -2 |
888 1410 2104 25996 4110 |
1126 709 4575 333 243 |
||
|
110 120 130 |
+4 -2 |
5457 7102 9030 |
182 140 110 |
45~60 |
|
|
140 150 |
+4 -3 |
11278 13871 |
88 72 |
