Dose Equivalent Analyzer
- The neutron ambient dose equipment analyzer produced by our company adopts such a new principle as slow neutron detection and 3-dimensional energy response regulation, and selects 6Li glass scintillator as the probe to accurately measure the neutron dose equivalent rate in the measuring environment. The instrument has such characteristics as high sensitivity, gamma-ray resistance, good energy response, etc.

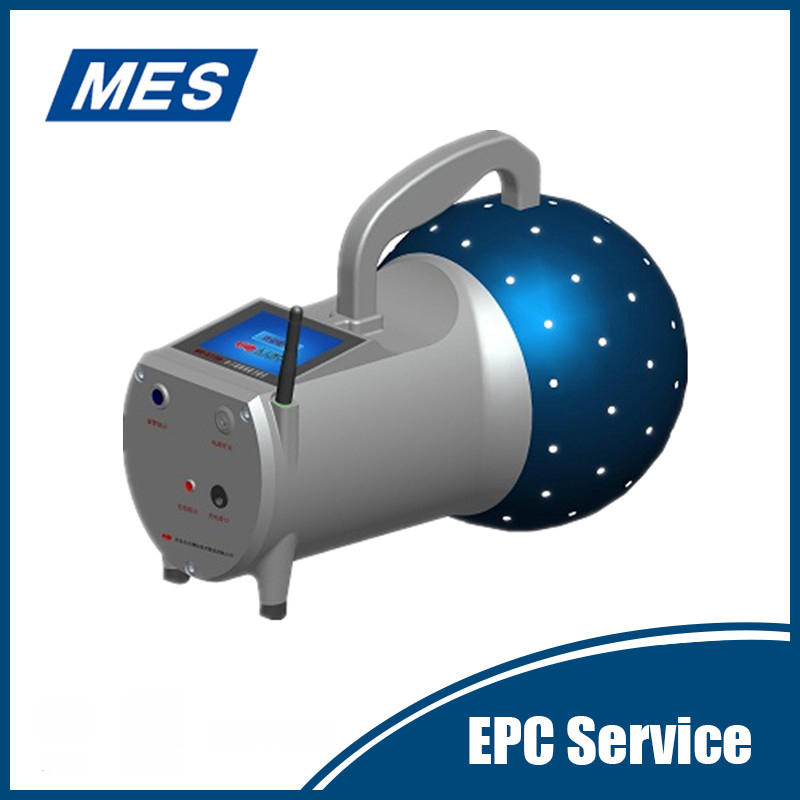

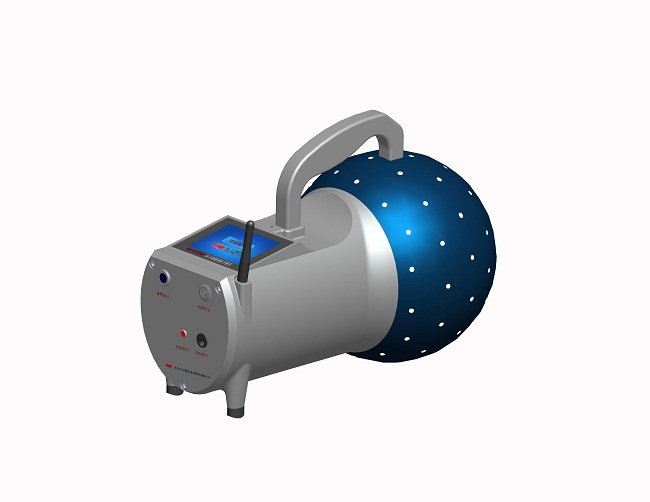

DF-5720 Neutron Ambient Dose Equivalent Analyzer
1.Product Introduction
The neutron ambient dose equipment analyzer produced by our company adopts such a new principle as slow neutron detection and 3-dimensional energy response regulation, and selects 6Li glass scintillator as the probe to accurately measure the neutron dose equivalent rate in the measuring environment. The instrument has such characteristics as high sensitivity, gamma-ray resistance, good energy response, etc.
2.Working Principle
This instrument selects and uses 6Li glass scintilator as the probe to do slow detection to fast neutrons. By utilizing the principle of energy response regulation in 3-dimensional space, it makes the neutron counting rate and neutron dose rate detected by the neutron detector meet a specific relation to realize the measurement of the dose equivalent rate.
3.Application
The neutron dose equivalent analyzer is highly closed, light in weight, small and suitable for neutron dose monitor in such places as neutron irradiation, neutron logging, neutron experiment, nuclear reactor, nuclear waste material treatment, nuclear power station, nuclear submarine, etc. where neutron radiation field exists.
4.Technical Parameters
Measurement range: 1uSv.h-1~10mSv.h-1
Energy range: 0.025ev~16Mev
Sensitivity: 10 counts.S-1/(uSv.h-1)
Inherent error: Less than ±20%
Measurement repeatability: Less than 20%
γ suppression ratio: Greater than 100: 1 in 10mSv.h-1 137Cs field
Angle response: Less than ±25%(0°~±90°)change
Radio transmission distance: Not less than 10m
Alarm mode: Audible and visual alarm
Power supply mode: Charged lithium battery
Continuous working hours of battery: Greater than 7 hours
Working temperature: -10°C~+50°C
Protection class: IP51
Weight: 6.6kg
Instrument dimensions: 362mm×200mm×248mm
