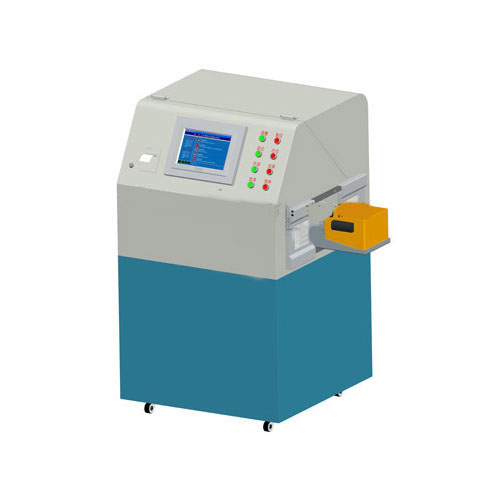

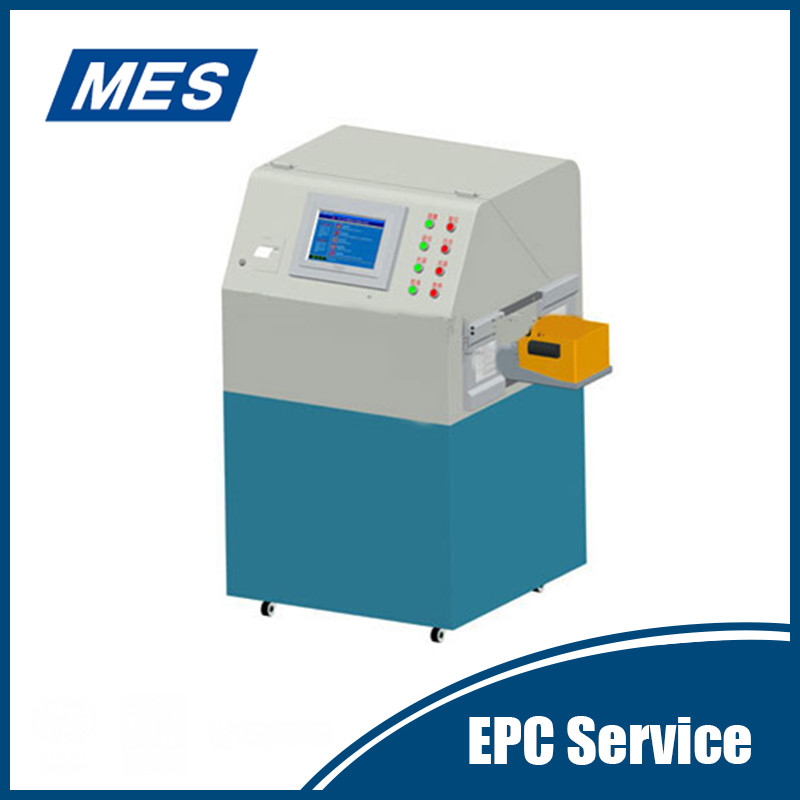

Offline Coal Ash Analyzer
- The Off-Line Coal Ash Analyzer is used in the off-line measurement of fast and accurate analysis for coal ash samples in the industrial production process. The analyzer can satisfy the analysis need in the coal mining processing and utilization industry. It's widely used in coal mine, coal preparation plants, coking plants, steel mills as well as coal terminals.
Offline Coal Ash Analyzer
1.Product Introduction
The Off-Line Coal Ash Analyzer is used in the off-line measurement of fast and accurate analysis for coal ash samples in the industrial production process. The analyzer can satisfy the analysis need in the coal mining processing and utilization industry. It's widely used in coal mine, coal preparation plants, coking plants, steel mills as well as coal terminals.
2.Working Principle
It uses the dual-energy γ-ray absorption principle to calculate the coal ash value by establishing a mathematical model between coal ash changes to two γ photons passing through coal beams.
3.Technical Parameter
Measurement range: 5%~50%
Measurement precision:
•coal ash<15%,error ≤±0.5%
•coal ash 15%~30%,error≤±1.0%
•coal ash>30%,error≤±2.0%
Typical measuring time: 3~5 min
Analysis of sample weight: 3~5 Kg
Repeatability: the same sample is measured repeatedly, root mean square error of the results is less than 0.2%
Long-term stability: 24-hour continuous measurement of the standard block, the deviation of one of “ten minutes ash” measuring value and average value is less than 0.5%
Environment temperature: 0~45°C
Environment humidity: ≤95%,non-condensing
Power: 220V(±10%)50Hz
