Maximizing Efficiency and Sustainability with RTO Technology: Revolutionary Waste Gas Treatment Solutions
- RTO is a sophisticated and efficient technology for VOCs and HAPs abatement, offering high destruction efficiency, energy recovery, and environmental benefits. Its widespread adoption across industries underscores its importance in promoting cleaner and greener industrial practices.
Maximizing Efficiency and Sustainability with RTO Technology: Revolutionary Waste Gas Treatment Solutions
1. Introduction to RTO (Regenerative Thermal Oxidizer)
RTO, stands for "Regenerative Thermal Oxidizer," is a highly efficient and environmentally friendly technology utilized for the treatment of volatile organic compounds (VOCs) and other harmful air pollutants (HAPs).
1.1 Functionality: RTO is a thermal oxidation process that employs heat energy to directly combust organic waste gases, converting them into harmless carbon dioxide and water vapor. This process not only purifies the exhaust gases but also recovers the heat generated during combustion for reuse, enhancing energy efficiency.
1.2 Structure: RTO systems typically consist of a combustion chamber, ceramic media beds (or heat recovery beds), and automated control valves. The ceramic media beds facilitate heat transfer and recovery, allowing the system to operate at high temperatures while minimizing energy consumption.
1.3 Efficiency: RTOs are renowned for their high destruction and removal efficiency (DRE), often exceeding 99% for most VOCs and HAPs. They can handle a wide range of organic pollutants and are particularly effective in treating medium to high-concentration waste gases.
1.4 Environmental Benefits: By converting harmful pollutants into harmless byproducts and recovering waste heat, RTO technology significantly contributes to environmental protection and sustainable development goals.
1.5 Technical Maturity: With over 30 years of application history, RTO technology is considered mature and widely adopted globally due to its proven performance and reliability.

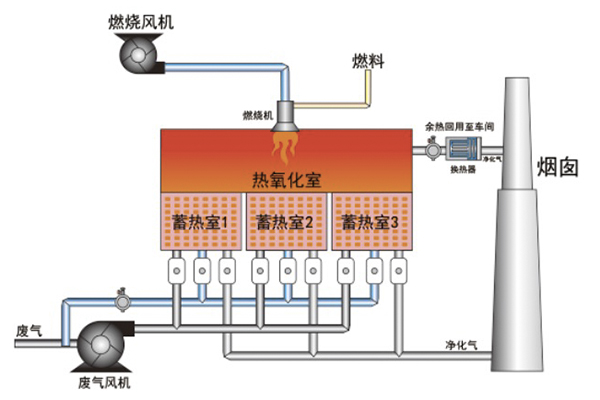

2. RTO Working Principle
The Regenerative Thermal Oxidizer, or RTO, is a highly efficient device designed for treating organic waste gases. Its core functionality revolves around the principle of thermal oxidation, coupled with heat recovery mechanisms. Here's how it works:
2.1 Thermal Oxidation:
RTO subjects organic exhaust gases to extreme temperatures, typically exceeding 760°C. At this temperature, the volatile organic compounds (VOCs) within the waste gases undergo oxidation, breaking down into harmless carbon dioxide (CO2) and water (H2O). This oxidation process releases a considerable amount of heat.
2.2 Heat Recovery and Regeneration:
The heat generated during the oxidation process is captured and stored in specially designed ceramic heat storage media, known as regenerators or heat accumulators. These ceramics serve two critical purposes:
2.2.1 Heating Incoming Gases: As fresh, cooler waste gases enter the RTO, they are preheated by the hot ceramic media, significantly reducing the energy required to reach the oxidation temperature.
2.2.2 Regeneration Cycle: The heat storage media are periodically switched between a heating (exothermic) phase and a cooling (endothermic) phase, allowing for continuous heat recovery and efficient operation.
2.3 Valve Switching Mechanism:

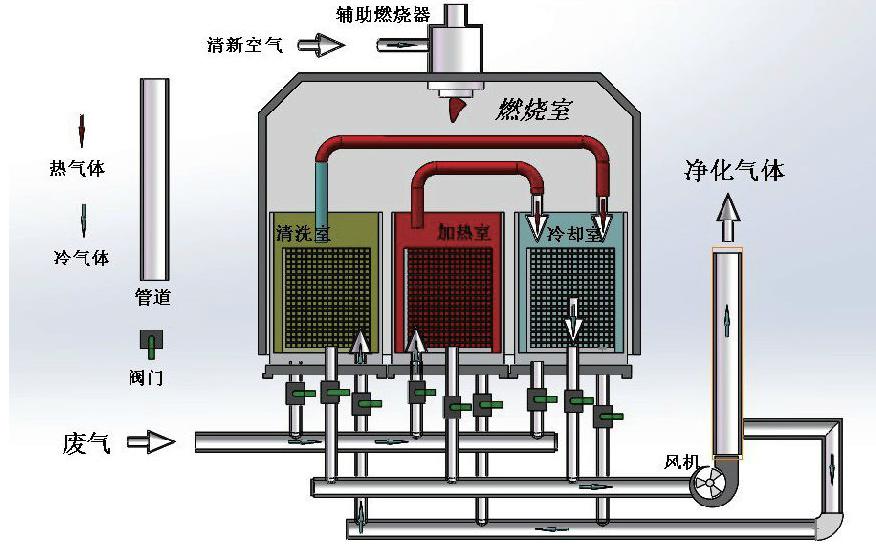

RTO systems, depending on their generation, employ different numbers of ceramic beds and valve configurations. For instance:
· Two-Bed RTO: The simplest configuration, involving two beds and a direct switch between heating and cooling phases. However, this system can experience brief periods of direct exhaust release during switching.
· Three-Bed RTO: Incorporates an additional bed for a "purge" function, enhancing decomposition efficiency by reprocessing residual VOCs.
· Rotary RTO: Uses a rotating valve system to distribute waste gases sequentially through multiple ceramic beds, offering the highest efficiency and minimal pressure fluctuations.
3. Benefits of RTO Technology
3.1 High Efficiency: RTO systems boast impressive VOC destruction rates, often exceeding 99%. This ensures that minimal pollutants escape into the atmosphere, safeguarding both the environment and human health.
3.2 Energy Recovery: By harnessing the heat generated during the oxidation process, RTO technology achieves significant energy savings. The recycled heat can be used for various purposes, such as preheating incoming air or even supplying heat to other processes, further reducing operational costs.
3.3 Versatility: RTO systems are highly adaptable, capable of treating a wide range of VOC-laden exhaust gases from various industries. Their modular design allows for easy customization to suit specific process requirements.
3.4 Environmental Sustainability: With its focus on emissions reduction and energy efficiency, RTO technology aligns perfectly with the principles of sustainable development.
It offers a practical solution for industries looking to minimize their environmental footprint.
3.5 Low Maintenance and Longevity: Well-designed and properly maintained RTO systems can provide years of reliable service. Their robust construction and simple operating principles contribute to their low maintenance requirements and extended lifespans.
4. Application
RTO technology is ubiquitous across numerous industrial sectors due to its versatility and high treatment efficiency. Here are some key application domains:
4.1 Printing Industry:
The printing process generates significant amounts of VOCs, including solvents and inks. RTO effectively treats these emissions, ensuring compliance with environmental regulations.
4.2 Coating and Surface Treatment:
Coatings and surface treatments often involve the use of VOC-laden chemicals. RTO systems efficiently purify these emissions, reducing the environmental impact.
4.3 Chemical Manufacturing:
Chemical plants produce complex waste gases containing various VOCs. RTO technology is well-suited for treating these streams, ensuring safe and compliant disposal.
4.4 Solvent Processing:
Industries that rely heavily on solvents, such as paint and adhesive manufacturing, generate high concentrations of VOCs. RTO systems are essential for treating these emissions and maintaining regulatory compliance.
4.5 Automotive Industry:
Paint shops and other automotive production facilities generate substantial VOC emissions. RTO technology provides an effective solution for treating these gases, ensuring clean and safe working environments.
5. Conclusion
In conclusion, RTO technology represents a pinnacle of innovation in industrial waste gas treatment. Its efficient thermal oxidation and heat recovery mechanisms make it an ideal choice for a wide range of industries seeking to reduce their environmental footprint.
