Vibrating screen panel
- vibration screen panel introduce:

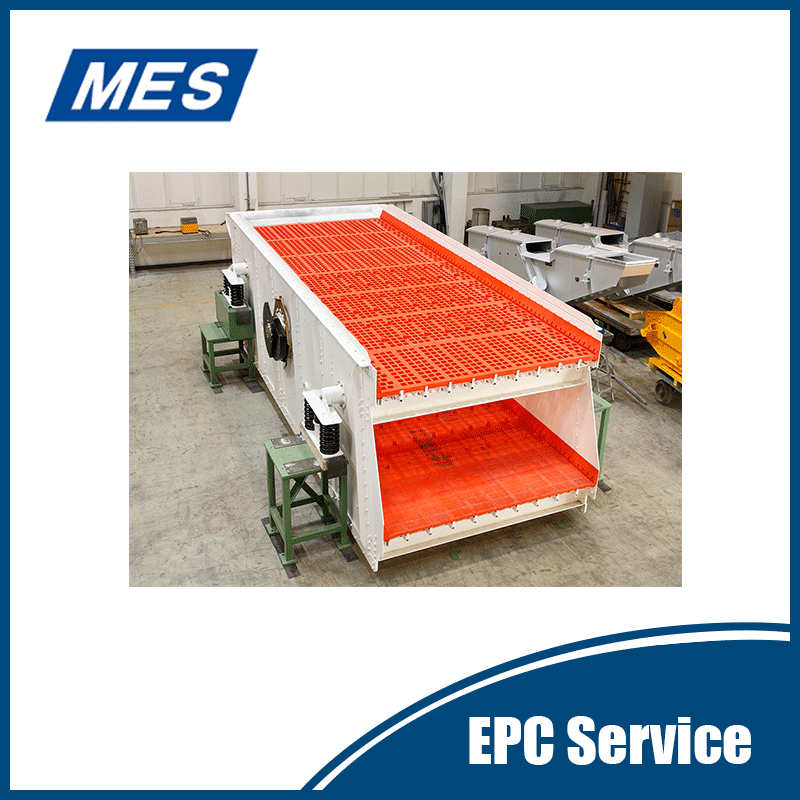

Screening equipment is widely applied in industrial sectors of metallurgy, building material, coal, and road construction. The screen panels and sieves of a screening equipment can separate mixed material of different kinds into different classes of particle sizes through the combination of single-deck or multi-deck screens, so as to meet the requirements of a certain ore dressing process.

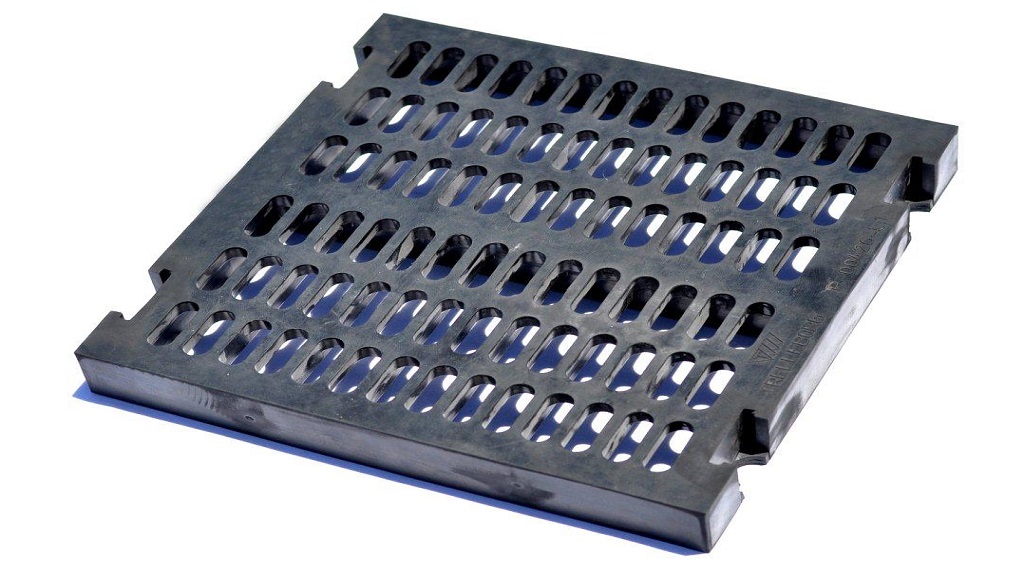

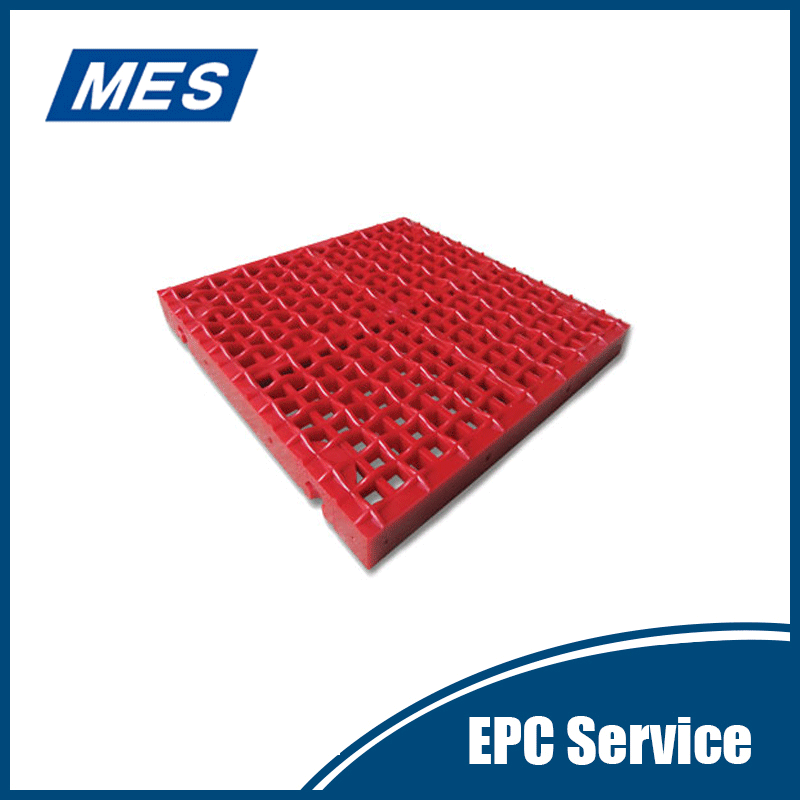

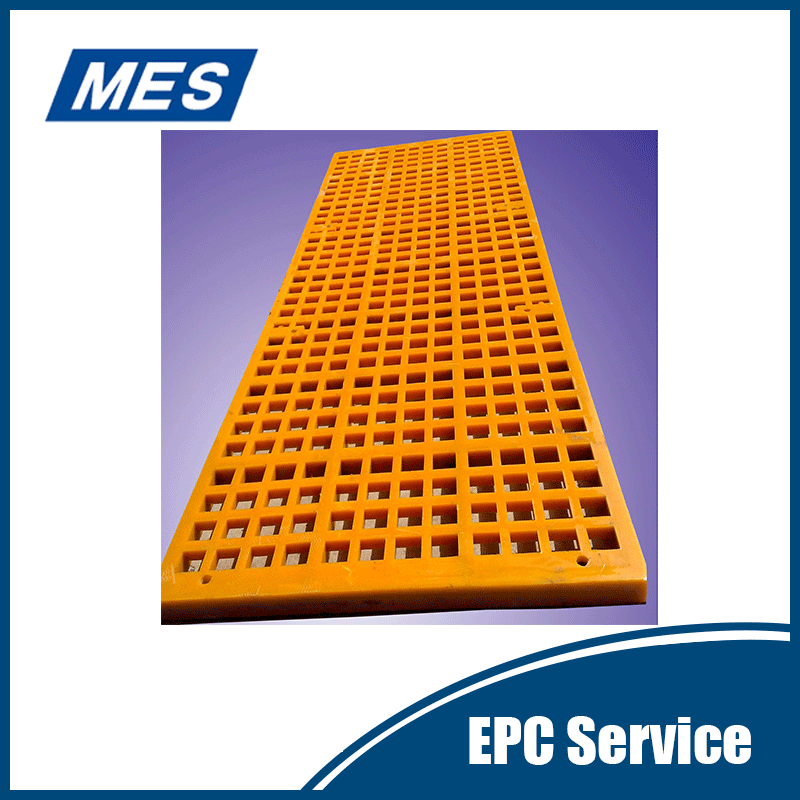

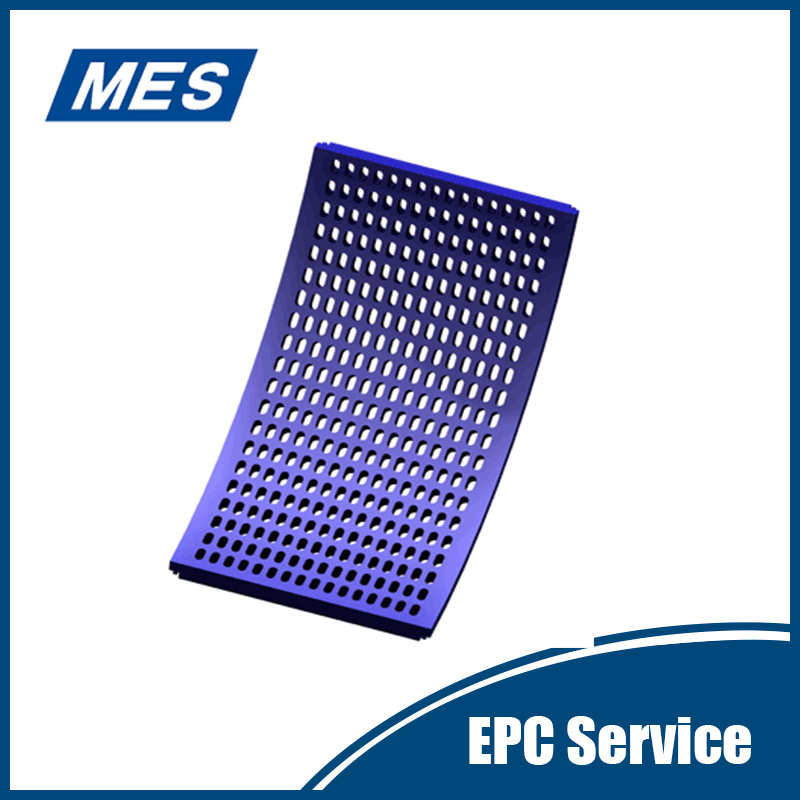

Vibrating screen panel
Screening equipment is widely applied in industrial sectors of metallurgy, building material,
coal, and road construction.
The screen panels and sieves of a screening equipment can separate mixed material of different
kinds into different classes of particle sizes through the combination of single-deck or
multi-deck screens, so as to meet the requirements of a certain ore dressing process.
Our vibrating screen panel which has outstanding qualities and will significantly increase
panel life in both high impact and high abrasion applications.
A reference list of products used in site:
|
Mill model number |
Specification of trommel |
Main clients |
|
φ7.9×13.6m ball mill |
φ3500×3605mm |
SINO Iron,WA, Australia |
|
φ7.32×10.68m ball mill |
φ3000×3940mm |
Dashan copper mine |
|
φ5.5×8.8m ball mill |
φ3000×3605mm |
VARGEM GRAND Mine Vale Brazil |
|
φ7.32×12.5m ball mill |
φ2300×3741mm |
TaiSteel,Taiyuan,China |
|
φ9.15×5.03m SAG mill |
φ3000×3605mm |
China National Gold Group Corporation |
|
φ8.5×4.0 m SAG mill |
φ2300×3741mm |
Dongguashan Copper Mine |
I. Features of vibration screen panel:
Light in weight, easy for strip-down and reassembly on site, reducing operators’ work intensity;
High damping capacity resulting in reduced noise;
Good resilience leading to a higher bounce frequency of materials and an increased screen efficiency;
Apertures remain unblocked;
Thanks to the wear resistance of rubber material, screen apertures keep a constant size, resulting in a
screening accuracy over the range of 90%.
II. Advanced Manufacture Technology of vibration screen panel
Cutting and bonding technology: screen panels are processed with cutting and bonding technologies,
where a cut-out panel can be bonded with a clamping bar, an end plate or a hook plate with the
bonding technology.
Flexible skeleton: screen apertures are surrounded by flexible skeletons, making them free of blockage.
III. Structural Form of vibration screen panel
Structure with hooking: in order to facilitate the installation and to increase the tension strength,
rubber panels are individually compression molded, then clamping strips, clamping edges
and hook plates can be mounted by means of bonding or riveting.
Structure with bolting: metal skeletons are inserted in rubber panels to prepare mounting bolt holes,
which are fastened on screen frame with bolts.
IV. OEM
Depending on our customers’ requirements, we can supply rubber screen panels and vibration
screen panels with different aperture shapes,structures, sizes and formulations based on different
types of screening equipment.
Rubber screen panels and sieves produced by MES which have a stronger advantage than those
made of other materials in price-to-performance ratio for operations, and users are warmly
welcomed to choose NSH Series rubber screen panels and sieves for screening equipment
manufactured by MES .
