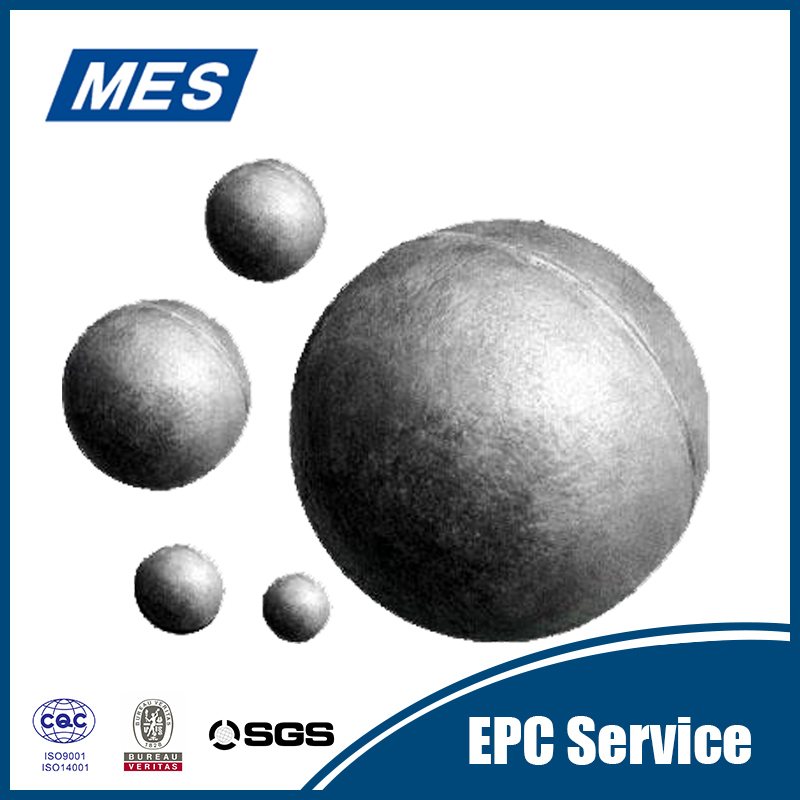

Grinding Ball

Model：High chromium alloy grinding ball
Weight：0.11~8.74kg
Surface hardness：≥58 HRC
Application range：It is widely used in powder preparation and superfine deep processing of industries, such as building materials, mine, chemical engineering, ceramic material, paper-making, magnetic materials.

Product details

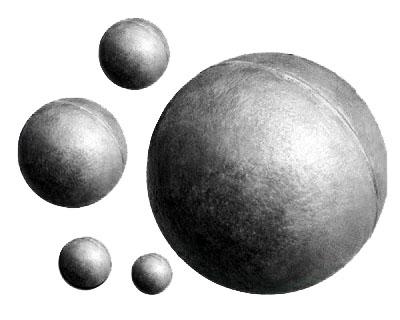

High Chromium Alloy Grinding Ball

High_chromium_alloy_grinding_ball

Introduction

High chromium alloy grinding ball is widely used in powder preparation and superfine deep processing of industries, such as building materials, mine, chemical engineering, ceramic material, paper-making, magnetic materials. Its surface hardness can up to 65HRC, hardness gradient is evenly distributed. Low wear friction, good toughness, product quality is not lower than the standard GB/T17445-2009, there is no deformation. It increases recovery rate of concentrate and production capacity of mill, prolongs the service life of liner plate of the mill,and reduces the cost of production.

Production Technology

Medium frequency furnace smelts high quality steel scrap, chromium alloy and other alloy materials first, after micro alloying processing is cast molding with steel model. Constant temperature pouring ensures there is no sand inclusion, stoma, collapse and other quality defects. Heat treatment oil quenching process, quenching and tempering will change internal structure of the ball, reduce the internal stress of sphere,ensure breaking rate to further improve the performance after quenching.Semi-finished product and finished product adopt advanced spectrum detection to ensure the stability of chemical composition and performance.

Chemical composition

Name

chemical composition（%）

C

Si

Mn

Cr

Mo

Cu

P

S

Ordinary high chromium ball

2.0-3.3

≤1.2

0.3-1.5

10-13

0-3.0

≤1.2

≤0.1

≤0.06

Special high chromium ball

2.0-3.3

≤1.2

0.3-1.5

15-23

0-3.0

≤1.2

≤0.1

≤0.06

Mechanical properties and metallographic structure

Name	Surface hardness （HRC）	Impact value（J/cm2）	Metallographic structure	Falling ball impact fatigue service life
Ordinary high chromium ball	≥58	≥4	M+C+A	≤Φ80	≥15000
				≥Φ80	≥10000
M- martensite C- carbide A- retained austenite

Specification

specification（mm）

unit weight

（kg）

quantity（pc/t）

specification（mm）

Unit weight（kg）

quantity（pc/t）

Φ30

0.11

9091

Φ90

2.90

345

Φ40

0.25

3891

Φ100

4.00

250

Φ50

0.50

2000

Φ110

5.30

188

Φ60

0.86

1153

Φ120

6.80

147

Φ70

1.37

729

Φ130

7.70

129

Φ80

2.05

487

Φ140

8.74

114
