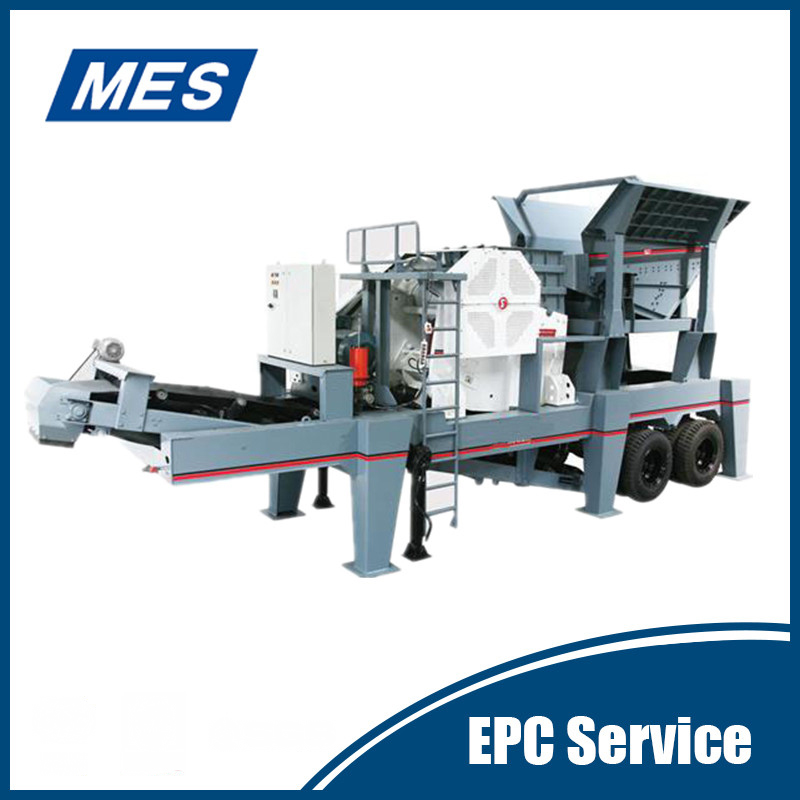

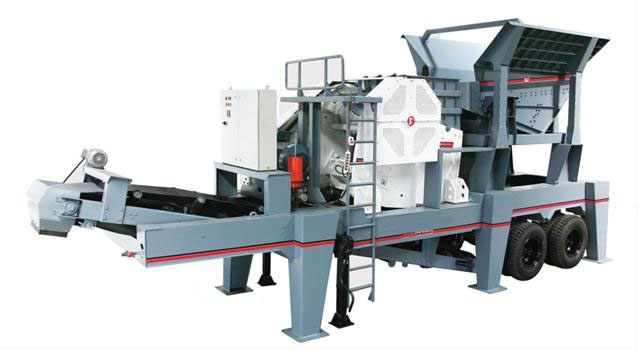

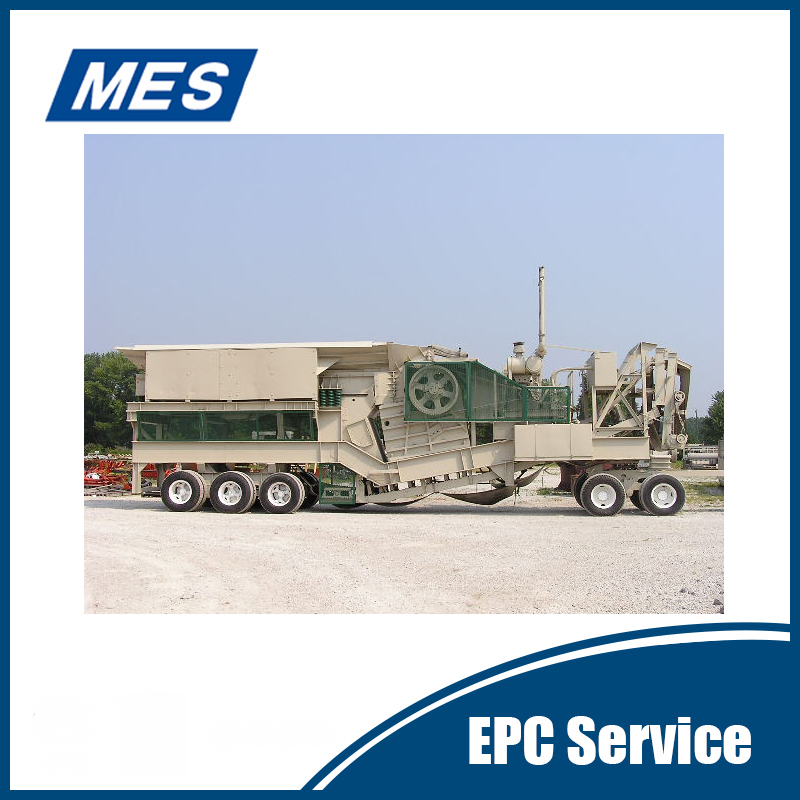

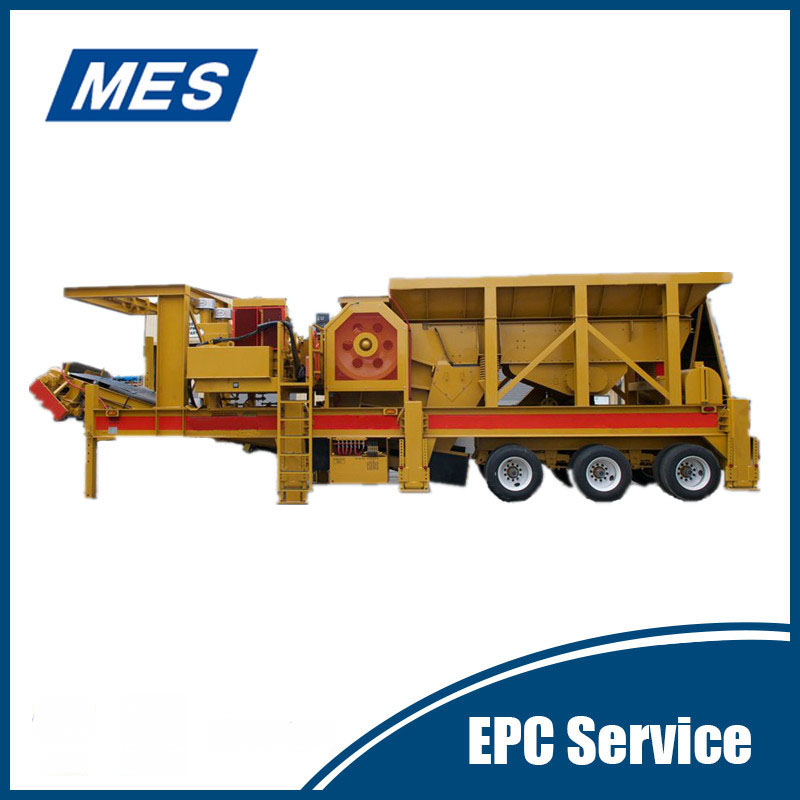

Wheel Jaw Plant
- MES is launching a new, comprehensive wheel jaw plant series for efficient fully mobile crushing, and screening applications.
The new HMP wheel jaw plant concept is fully adaptable to all mobile crushing needs, opening up a whole new range of business opportunities for contractors, quarry operators, recycling and mining applications.
Model:HMP series
Composition:Feeder,Feeder Hopper,Crusher,Under Crusher Conveyor,Side Conveyor
Wheel Jaw Plant
1.Introduction of Wheel Jaw Plant
MES is launching a new, comprehensive portable plant series for efficient fully mobile crushing, and screening applications.
The new HMP portable plant concept is fully adaptable to all mobile crushing needs, opening up a whole new range of business opportunities for contractors, quarry operators, recycling and mining applications.
Flexible operation - from coarse to fine crushing and screening.
The HMP Series portable plant can be operated as independent units or as a two- or three-stage crushing application: from primary to secondary, tertiary and fine crushing. As required, a portable screen can be attached to the process.
Built around proven quality crushers.
HNW series portable plants are built in lightweight and superior in engineering design, they are ideally suited to the most demanding portable crushing and screening applications, and it offers new possibilities in mobile crushing - always at the lowest cost per ton.
HMP portable plant highlights:
• Built around proven MES latest crushing & screening technology
• Everything on board: feeders, screens and power installations
• Suitable for two- and three-stage crushing applications
• Quick road transportation thanks to king pin arrangement
2.Technical Parameters of Wheel Jaw Plant
Technical
Parameters
HMP0850JC
HMP1000JC
HMP1150JC
Feeder
Model
GPF0832
HPF1040
HPF1260
Size(mm*mm))
800*3200
1000*4000
1200*6000
Grizzly
Length(mm)
900
2*900
2*1200
Power(kw)
2*3.7
15
22
Feeder
Hopper
Capacity(m3)
7
10
12
Crusher
Model
JC0850
JC1000
JC1150
Size(mm*mm)
850*510
1000*560
1150*700
Power(kw)
75
90
110
Under
Crusher Conveyor
Belt
Width(mm)
650
800
1000
Length(mm)
9650
10058
12100
Power(kw)
7.5
11
11
Side
Conveyor
Belt
Width(mm)
500
500
500
Length(mm)
4000
4500
4500
Power(kw)
3
5.5
5.5
Diesel
Drive/Generator
Options
Options
Options
