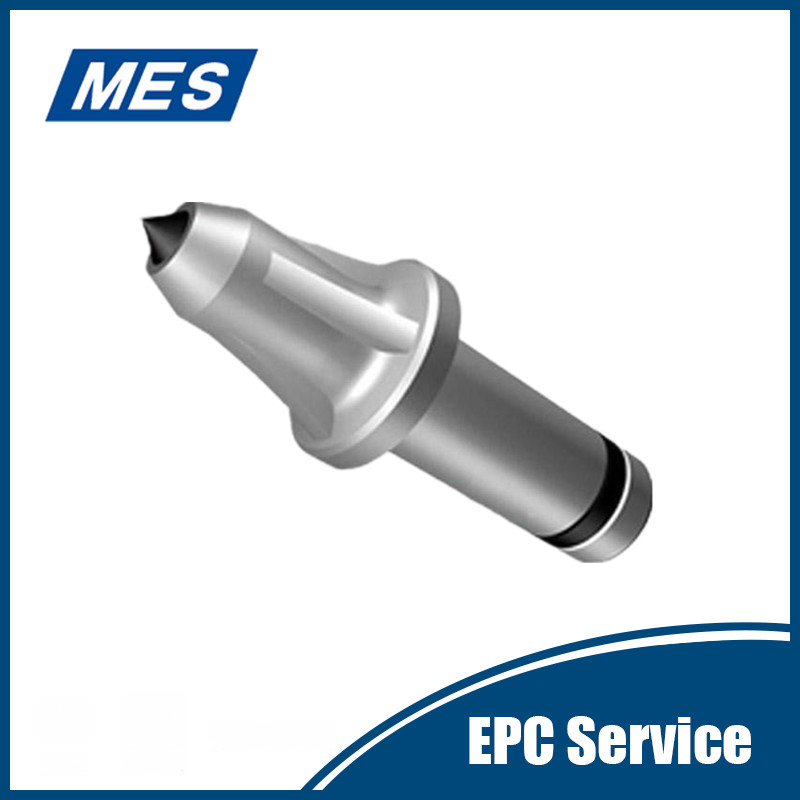

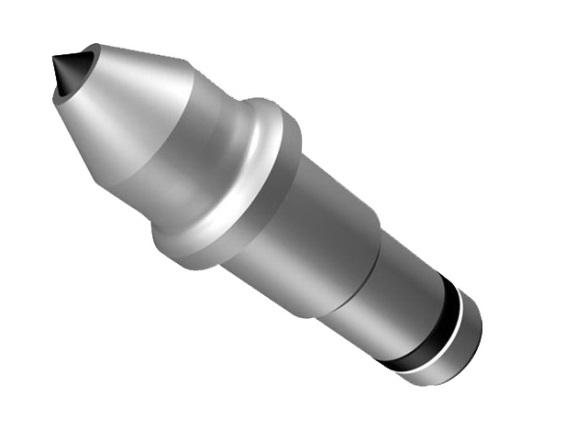

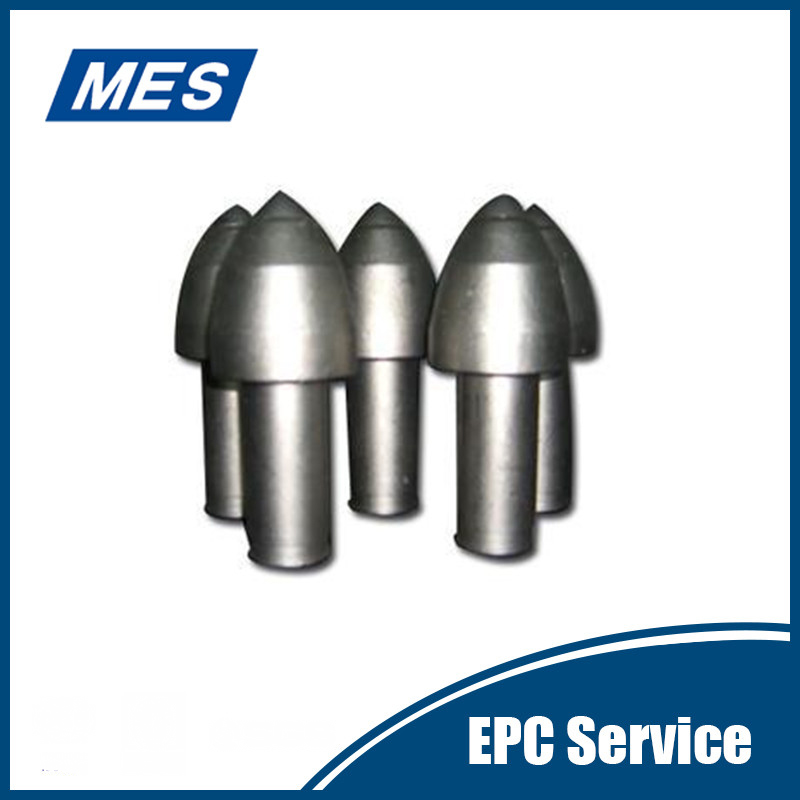

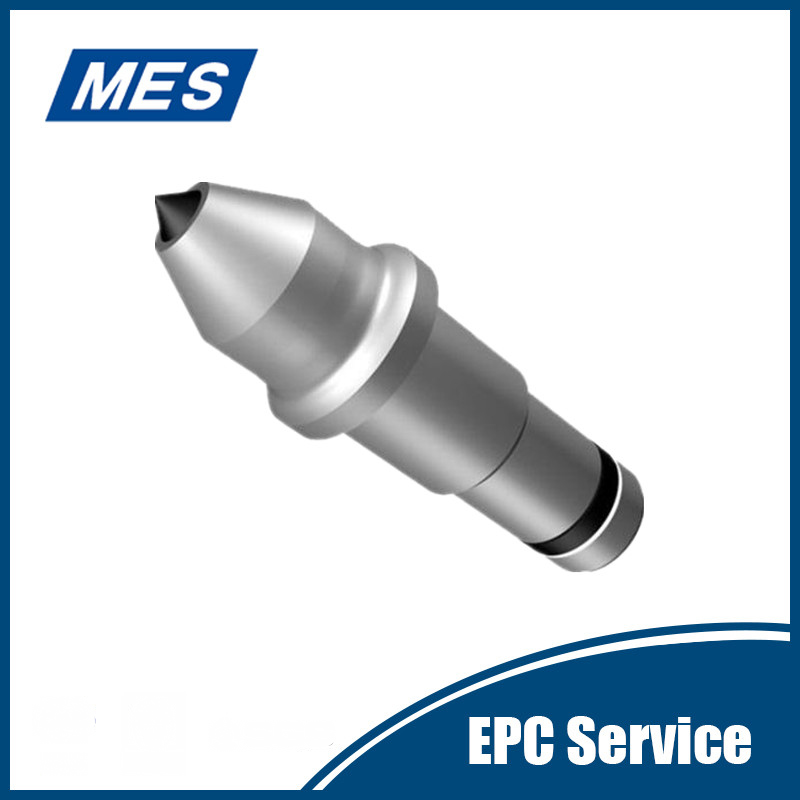

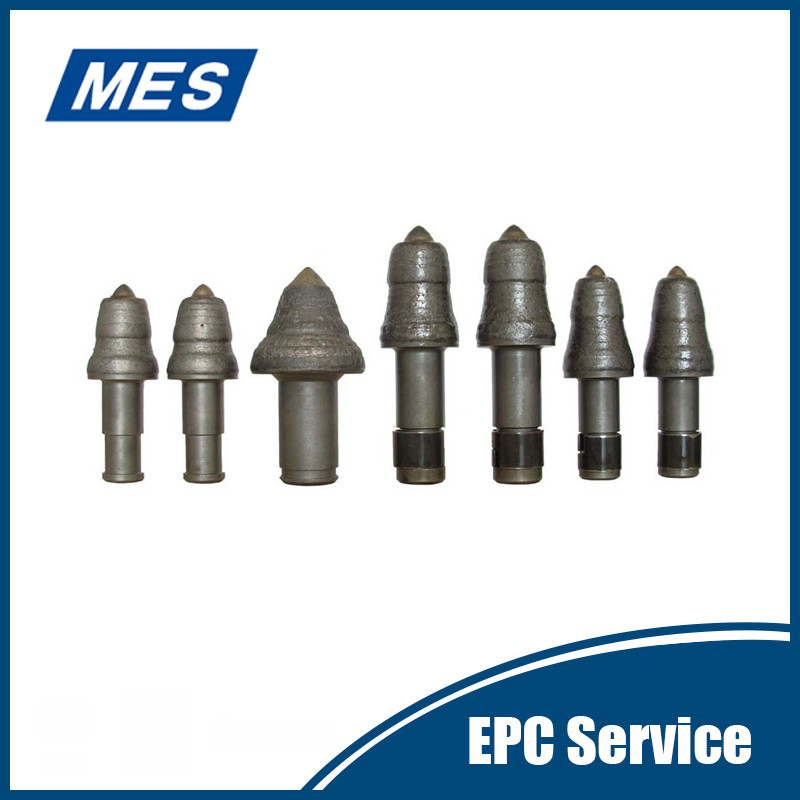

Mining Picks
- Mining picks body made from cold extrusion of high quality 42CrMo steel, the density is high, and there is no decarburization. It is mainly used for coal mining and drilling of roadway, tunnel and ground ditching. Used together with shearer, road-header, pavement planer, etc.
Model: u84 u82 u85 u92 u94 u95 s100 s120 s135 s150 s160 u170-S200
Application: coal mining, rock excavation
Weight: 1.7kg
Drilling depth: 10000m
Mining Picks
1.Introduction of Mining picks
Mining picks body made from cold extrusion of high quality 42CrMo steel, the density is high, and there is no decarburization. Adopts special heat treatment process, there is no oxidation. Mining picks head adopts isothermal quenching process, hardness will not be reduced. Cemented carbide uses high quality YG11C produced by large-scale manufacturer.
2.Application Range of Mining Picks
It is mainly used for coal mining and drilling of roadway, tunnel and ground ditching. Used together with shearer, road header, pavement planer, etc.
3.Classification of Mining Picks
Shearer picks can be divided into ordinary mining picks, wear-resistant mining picks, hard rock mining picks, no spark mining picks, hard rock mining picks, and sandstone mining picks.
4.Processing Technology of Mining Picks
Heat treatment process of 42CrMo cutter body is: 840℃ oil quenching+360～400℃ tempering. Heat treatment process of 35CrMnSi cutter body is: 880℃ oil quenching+430℃ tempering. If it is possible, you can use 880℃ heating and heat preservation+280～320℃ isothermal quenching, then use air cooling process.
5.Advantages Compared with Traditional Mining Picks
5.1. Long service life: it is 1-1.5 times than traditional mining picks.
5.2. High working efficiency: it is 2.5 times than traditional mining picks.
5.3. Energy saving: because of the reduction of changing frequency, the downtime of shearer is reduced, this also reduces mining cost.
Production quality standards:
A. Hardness of cone part: HRC＞65B, hardness of mining picks rod: HRC28°C-32°C
B. Surface hardness: HV＞2000. Using special heat treatment process makes it up to 40-50°C, there is no oxidation.
6.Parameters of Mining Picks
Model
u84 u82 u85 u92 u94
u95 s100 s120 s135 s150 s160 u170-S200
Name
The whole rock with
gangue coal seam mining picks
Application
Coal mining,
rock excavation
Weight
1.7kg
Vertical shaft
rotating speed
200 r/min
Drilling diameter
35mm
Drilling depth
10000m
Dimensions
30X146 35X180 38X156（mm）
