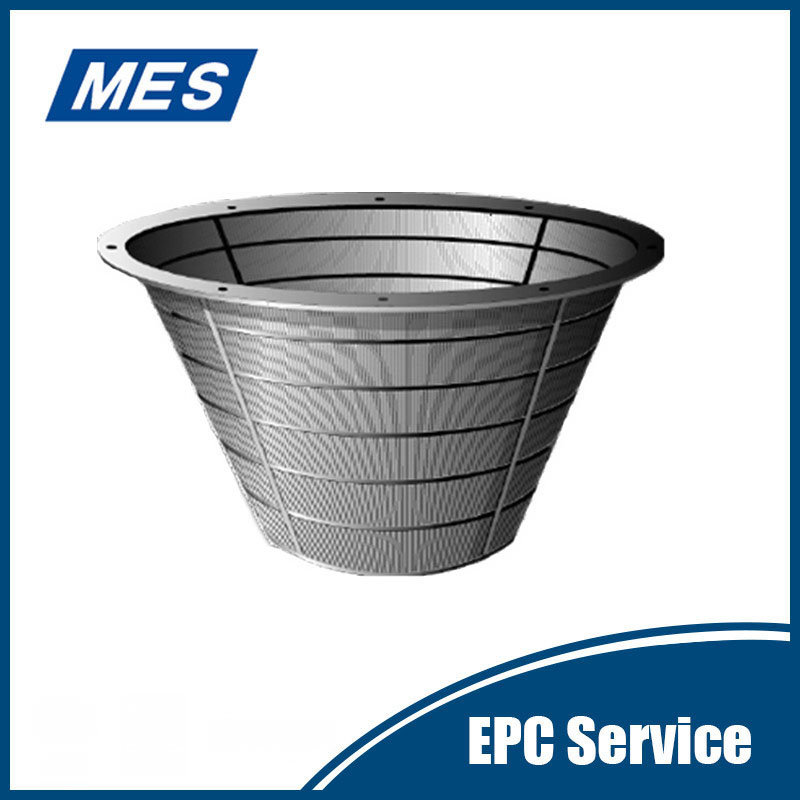

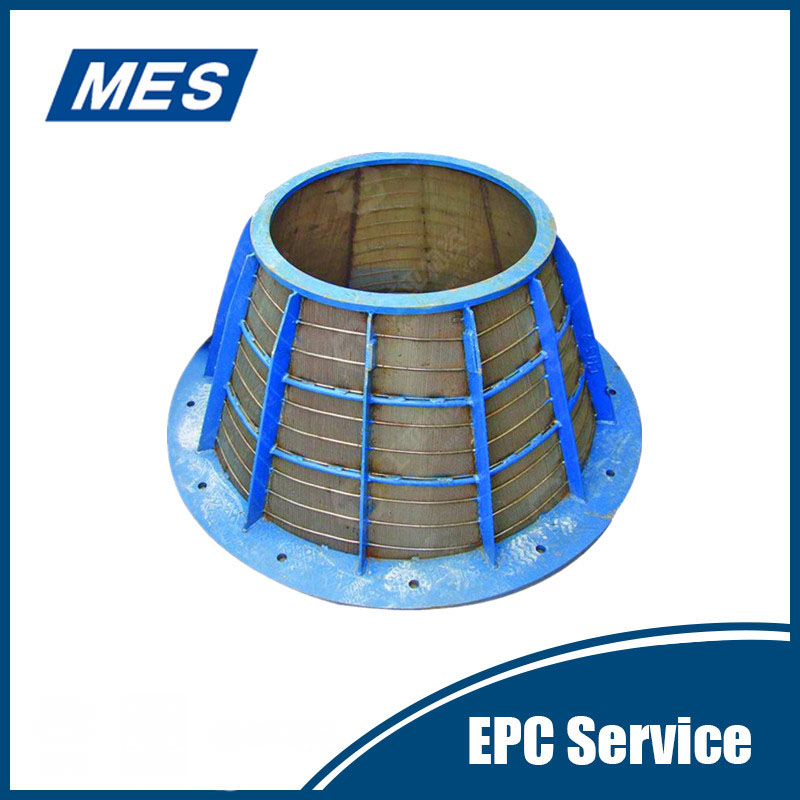

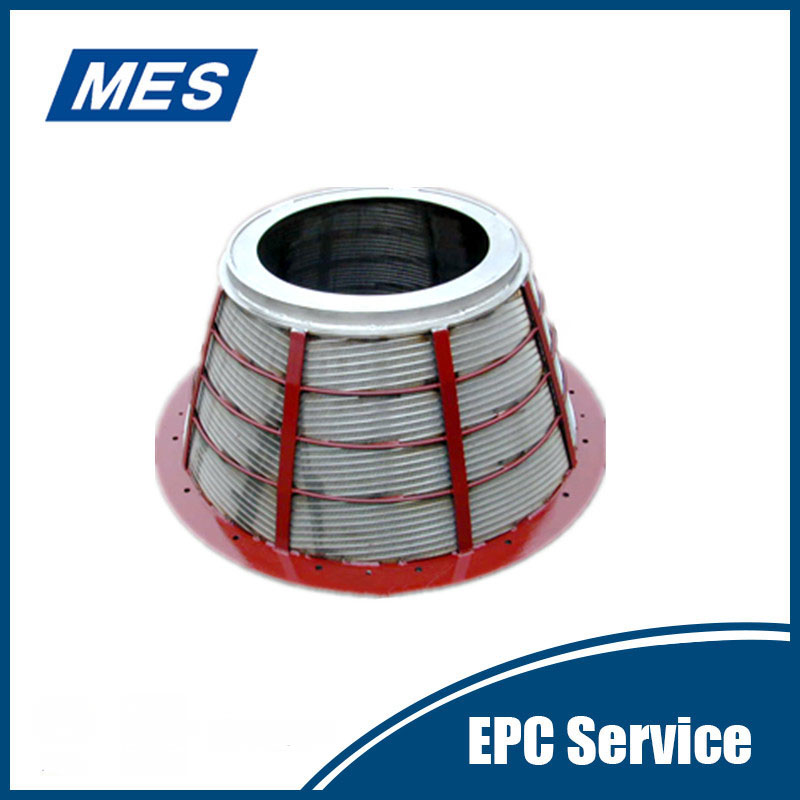

Centrifuge Basket
- Centrifuge basket is one of the key parts of centrifugal dehydration machine. It is is widely used in mining, petroleum, chemical, construction, machinery accessories.
Model:HWZ-1300k, HZI-1000, H-9, H-1200, H-800, H2-800
Half conical Angle : 13°, 20°
Maximum height : 90-700mm
Sieve basket gap: 0.3mm, 0.5mm
Centrifuge Basket
1.Brief Introduction of Centrifuge Basket
Centrifuge basket is one of the key parts of centrifugal dehydration machine. It is a high speed rotating component. When the screen basket is not only subjected to vibration load, but also bear the serious impact of coal and water, the intensity and accuracy requirements are relatively high. Varieties, specifications are more complete, can meet different coal types, different coal quality, the use of different screening requirements; the main process size is accurate, error is small, fixed bolt hole does not appear the wrong eyes, eye and other phenomena, so that the installation saves time and effort; good welding quality, structure is strong, no screen open welding, cracking and other phenomena; screen uniform, smooth, open hole, high permeability.
2.Materials of Centrifuge Basket
The main material of centrifuge basket includes low carbon steel, high manganese steel wire, stainless steel wire.
3.Advantages of Centrifuge Basket
3.1. Long service life, carrying capacity.
3.2. High screening efficiency.
3.3. Wide range of application, the application is stronger, and can be used for any type of vibrating screen machine.
3.4. High screening precision.
3.5. Low working noise, in line with national standards of environmental noise standards.
4.Application of Centrifuge Basket
Centrifuge basket is Widely used in mining, petroleum, chemical, construction, machinery accessories, door with a net, packaging, barbecue grill, barbecue net, sintering furnace net, with net hardware products, arts and crafts net, vibration screen, basket net, with net food machinery, cooking net, net wall, food, roads, railways, infrastructure with the net, for classification of solid material screening, liquid and slurry filtration, breed and civil.
Model
Big end diameter (mm)
Inner
diameter (mm)
Half conical
angle (°)
Maximum
height (mm)
Sieve basket
gap (mm)
HWZ-1300k
φ1312
13°
700
0.5
HZI-1000
φ1015
13°
554
0.5
H-9
φ919
20°
475
0.5
H-1200
φ1200
450
0.3
H-800
φ800
400
0.3
H-800
φ320
90
0.3
H2-800
φ801
290
0.3

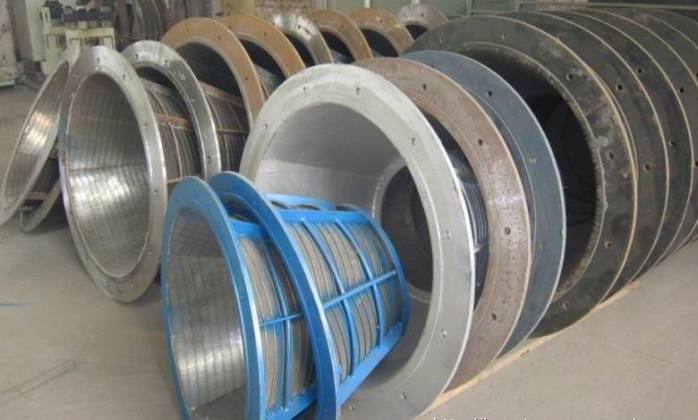

6.Factory Display
