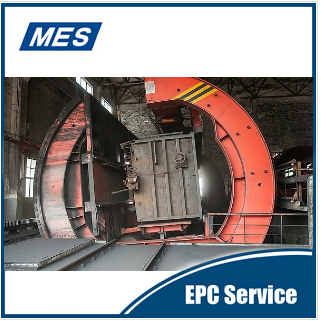

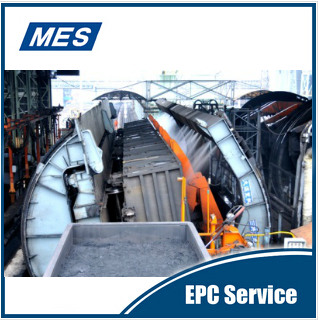

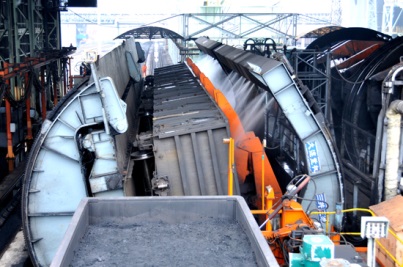

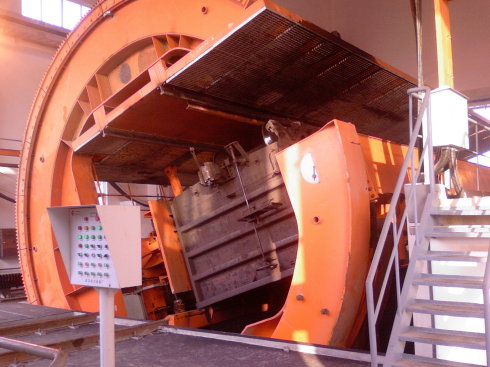

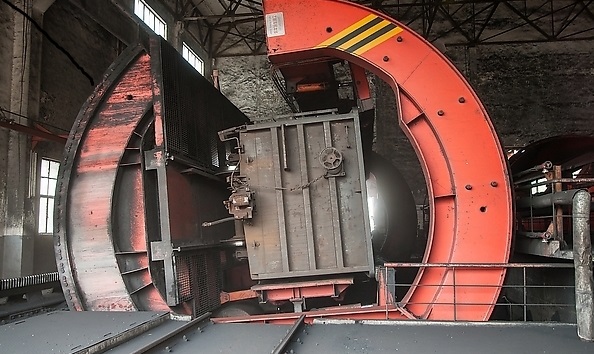

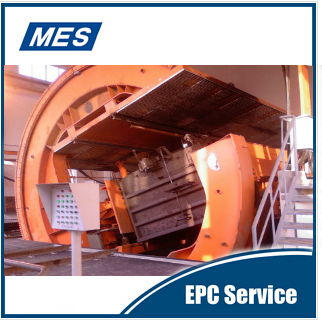

O-shape Single Car Dumper
- Model：Stationary rotor
Max load: 100t
Rotor angle：170°
Applicable vehicle weight（load）: 30~60t

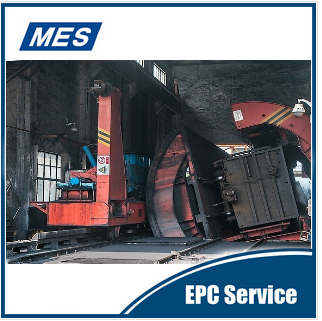

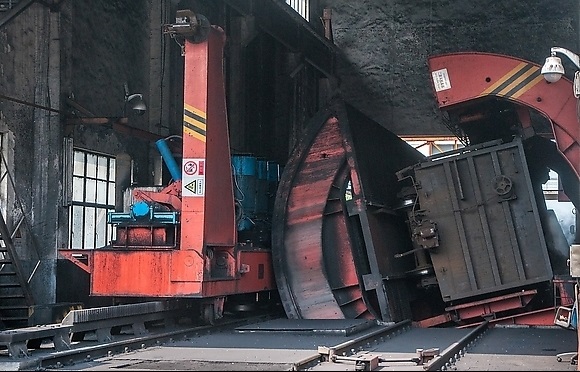

It uses O-shape roller and frame connection. The structure is simple, the overall rigidity is good, and the drive power is strong. A trolley is installed on the platform, which can be pulled out of the car after unloading.
O-shape Single Car Dumper
1.Description:
It uses O-shape roller plate and frame connection. The structure is simple, the overall rigidity is good, and the drive power is strong. A trolley is installed on the platform, which can be pulled out of the car after unloading.
2.Application:
Applicable to large ports and industrial sectors such as metallurgy, coal, thermal electricity and so on.
Applicable to extended forearm heavy truck shunting system that uses wire rope hauling.
Applicable railcar type: C60, C61, C62, C65 etc.
3.Parameters:
|
model |
Stationary rotor |
|
Max load |
100t |
|
Rotor angle |
170° |
|
Rotor slewing speed |
1.185r/min |
|
Drum diameter |
φ8140mm |
|
Applicable vehicle weight（load） |
30~60t |
|
Height (rail surface to upper string） |
1600~3500mm |
|
Max clamp length |
1995mm |
|
Drive power |
(FC=40%）: N=2x75kw |
|
Reducer ratio |
i=31.5 |
|
Rotary cycle |
≤60s |
|
