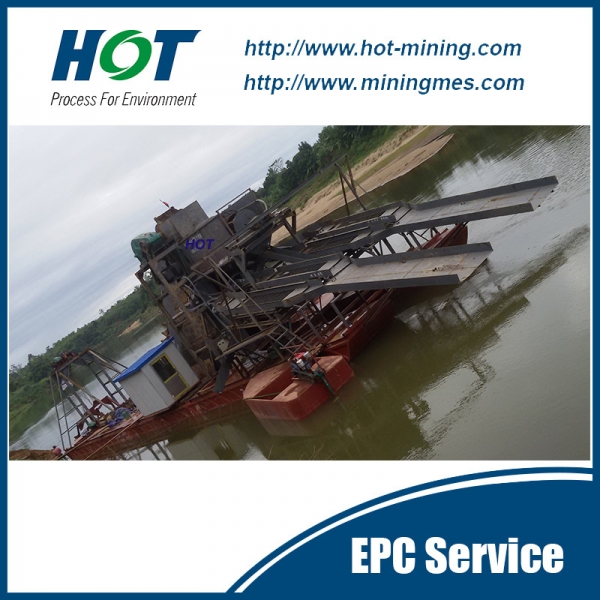

Bucket Type Gold / Diamond Dredger

Bucket type dredger is applied for waterways with high percentage of clay and gravels. Customized according to specific requirements for dredging depth and capacity.The dredger is composed of several gravity concentrators.






Bucket Chain Sand Dredger

The Chain bucket mud(sand) dredger is to fix mud(sand) dredging devices made up of bucket bridge,bucket chain and mud bucket on the center notching part of the bow or stern. When dredging,put the lower end of the bucket bridge into some depth of the water, making the mud(sand) bucket touch the soil(sand). Driven by the guide pulley on the upper end of the bucket bridge, the bucket chain operates continuously. It can dredge the mud(sand) by the mud bucket on the bucket chain. The dredged mud and sand are transported to the top of the bucket tower. After changed direction by guide pulley, the mud and sand in the bucket are put into mud well from the mud bucket under gravity of themselves. The mud and sand are discharged out of the ship board by the chute.



High Efficiency and Widely Used Mining Equipment Bucket Chain Mining Gold Dredge

Gold Dredger is the bucket gold panning ship, the equipment of the ship is made up of eleven parts and systems.

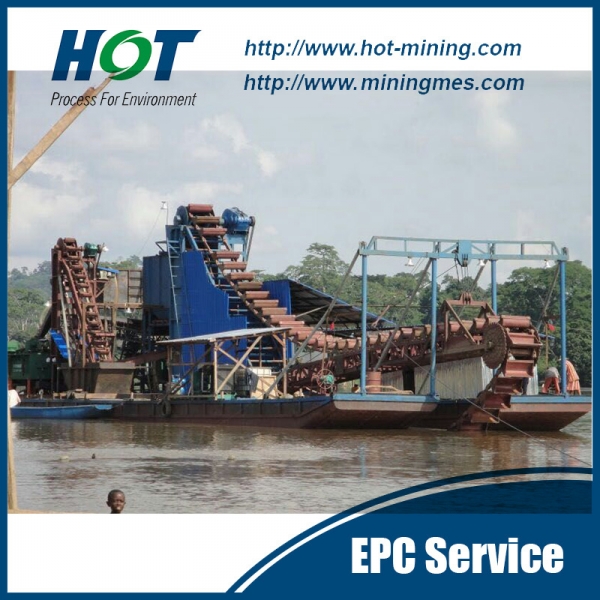

Bucket Chain Gold Dredger

The dredger could be divided into bucket type and pump suction type. Bucket type dredger is applied for waterways with high percentage of clay and gravels, while pump suction type can only be used for terrains with low percentage of clay and gravel.






Large Gold Diamond Washing Plant

Gold diamond washing Plant could be used to mine gold mixed with sand in palaeochannel, palaeo-riverbed, alluvial placer, tailing after ball milling, and diamond and zirconium in raw ore.






Export Good Quality Bucket Chain Alluvial Gold Dredger

Gold Dredger is the bucket gold panning ship, the equipment of the ship is made up of eleven parts and systems.






400t/H on Dry Land Gold Separation Machinery

Gold diamond washing Plant could be used to mine gold mixed with sand in palaeochannel, palaeo-riverbed, alluvial placer, tailing after ball milling, and diamond and zirconium in raw ore.This set of mining equipment are composed of several gravity concentrators. The concentration ratio could reach as high as 1:1000, and the gold recovery
efficiency is about 90% after series of separation.

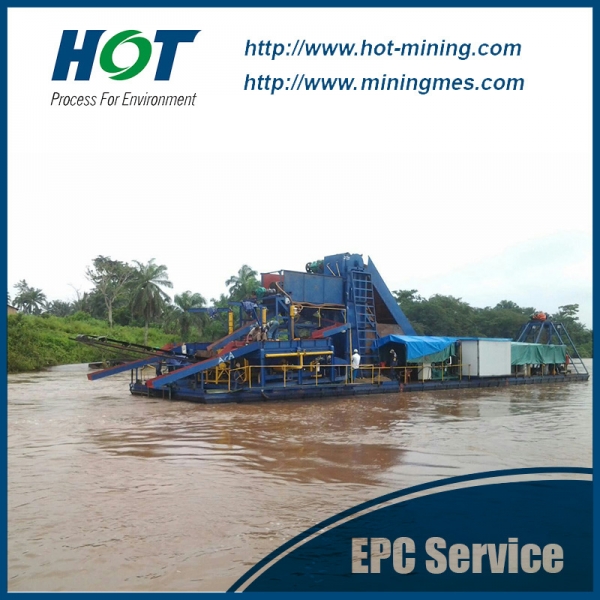

Mining Machine Chain Bucket Gold Dredge

Gold Dredger is the bucket gold panning ship, the equipment of the ship is made up of eleven parts and systems.






Diesel Engine 100t/H Bucket Type Gold Dredger

Gold Dredger is the bucket gold panning ship, the equipment of the ship is made up of eleven parts and systems.







8 Inch Cutter Suction Dredger

The cutter suction dredger could used in inland waterways, lakes, coastal areas for projects of desilting and sand dredging. Customized according to dredging depth, working capacity and discharge distance. The cutter suction dredger is of dismountable structure, and can be divided into mechanical type, semi-hydraulic type, all-hydraulic type according to the different operating methods. Dredging pump is driven by main diesel engine placed in main central pontoon, and auxiliary engine provides power to winches, spud and lighting system.




Dual-Suction Gold Dredger

The dredger could be divided into bucket type and pump suction type. Bucket type dredger is applied for waterways with high percentage of clay and gravels, while pump
suction type can only be used for terrains with low percentage of clay and gravel. Customized according to specific requirements for dredging depth and capacity. The dredger is composed of several gravity concentrators. It contains our pulsating sluice boxes and fixed sluice boxes, and the recovery efficiency is about 90% after series of separators.




Gold Washing Plant for Alluvial Gold or Placer Gold

Gold washing plant could be used to mine gold mixed with sand in palaeochannel, palaeo-riverbed, alluvial placer, tailing after ball milling, and diamond and zirconium in raw ore. Iron ore needs to be retrieved first with magnetic separator if the percentage is high in the raw ore, then gold, diamond, zirconium will be concentrated, or the effectiveness will be affected. This set of gold mining equipment are composed of several gravity concentrators. The concentration ratio could reach as high as 1:1000, and the recovery efficiency about 90% after series of separation.




500 M3/H Hydraulic Cutter Suction Dredger

Cutter suction dredger has broad range of applications in operations in the rivers and lakes for the dredging, channel excavation. In exceptional circumstances a cutter suction dredger cutter installed on the high-power devices, can be excavated without blasting rocks such as basalt and limestone strata.With characteristics of high efficiency, large output up to several thousand cubic meters per hour; the sand, or crushed rock material to rely on a strong driving force through the mud pumps and mud pipeline, pumping out a few kilometers outside.




6 Inch Cutter Suction Dredger

A sand dredger's (CSD) suction tube has a cutter head at the suction inlet, to loosen the earth and transport it to the suction mouth. The cutter can also be used for hard surface materials like gravel or rock. The dredged sand is usually sucked up by a wear-resistant centrifugal pump and discharged through a pipe line on to the land. Sand dredger is a good choice for dredging activities.

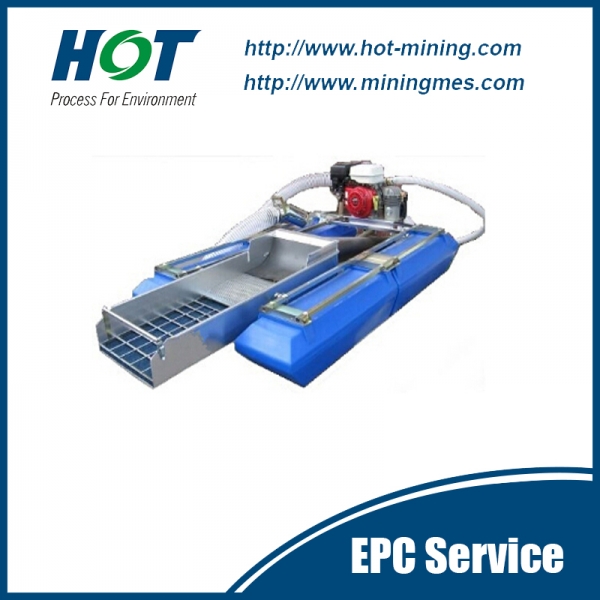

Small Gold Suction Dredge

A sand dredger's (CSD) suction tube has a cutter head at the suction inlet, to loosen the earth and transport it to the suction mouth. The cutter can also be used for hard surface materials like gravel or rock. The dredged sand is usually sucked up by a wear-resistant centrifugal pump and discharged through a pipe line on to the land. Sand dredger is a good choice for dredging activities.





Hot Mining Machinery 14 Inch Cutter Suction Dredger

A sand dredger's (CSD) suction tube has a cutter head at the suction inlet, to loosen the earth and transport it to the suction mouth. The cutter can also be used for hard surface materials like gravel or rock. The dredged sand is usually sucked up by a wear-resistant centrifugal pump and discharged through a pipe line on to the land. Sand dredger is a good choice for dredging activities.





Mining Machine 10 Inch Cutter Suction Dredger

A sand dredger's (CSD) suction tube has a cutter head at the suction inlet, to loosen the earth and transport it to the suction mouth. The cutter can also be used for hard surface materials like gravel or rock. The dredged sand is usually sucked up by a wear-resistant centrifugal pump and discharged through a pipe line on to the land. Sand dredger is a good choice for dredging activities.





300 mm (12-inch) (CSD) Cutter Suction Dredger

A sand dredger's (CSD) suction tube has a cutter head at the suction inlet, to loosen the earth and transport it to the suction mouth. The cutter can also be used for hard surface materials like gravel or rock. The dredged sand is usually sucked up by a wear-resistant centrifugal pump and discharged through a pipe line on to the land. Sand dredger is a good choice for dredging activities.

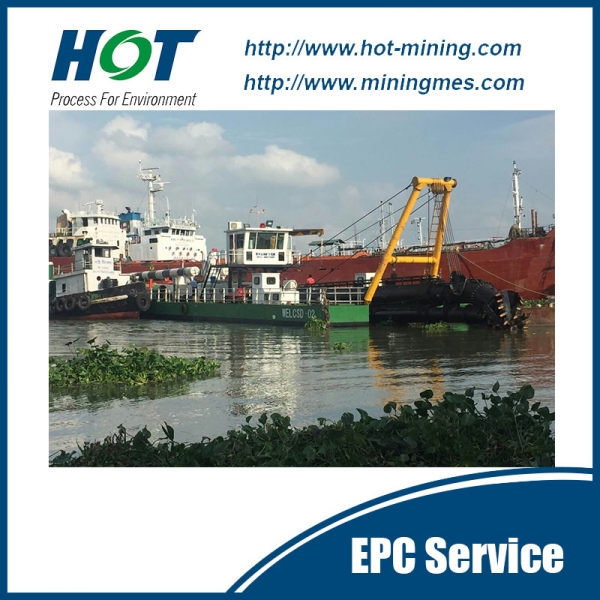

Cutter Suction Dredger

A sand dredger's (CSD) suction tube has a cutter head at the suction inlet, to loosen the earth and transport it to the suction mouth. The cutter can also be used for hard surface materials like gravel or rock. The dredged sand is usually sucked up by a wear-resistant centrifugal pump and discharged through a pipe line on to the land. Sand dredger is a good choice for dredging activities.

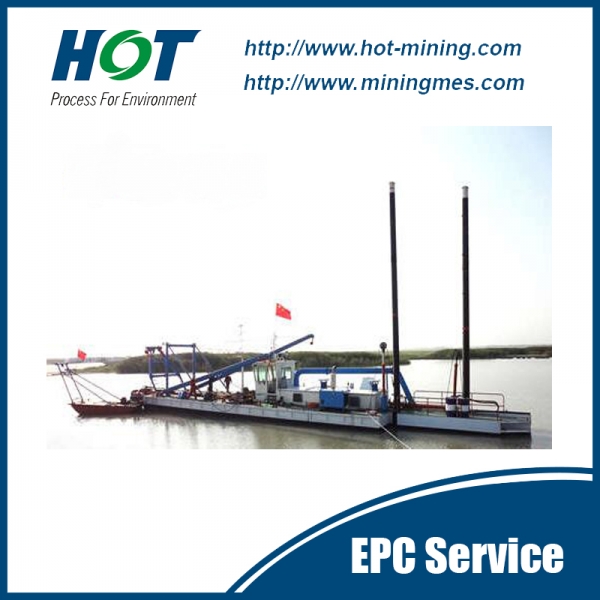

Gold Dredge Boat

Gold dredge boats are a great variety of products including 800-20000m3/h large scale dredging and sand mining equipment.






2017 New 3500m3/H Hydraulic Cutter Suction Dredger

First,The cutter suction dredger is used of front suction pipe installation of rotary cutter device,the sediment of cutting and stiring. Second,To the proper proportion in the mixing process of slurry mixing in cutting ,through the powerful suction pump,take the suction material transported to designated locations through the wind pipe. Next,The cutter suction dredger will wring,suction,material transport,unloading,a series of links,can be continuously completed once.
